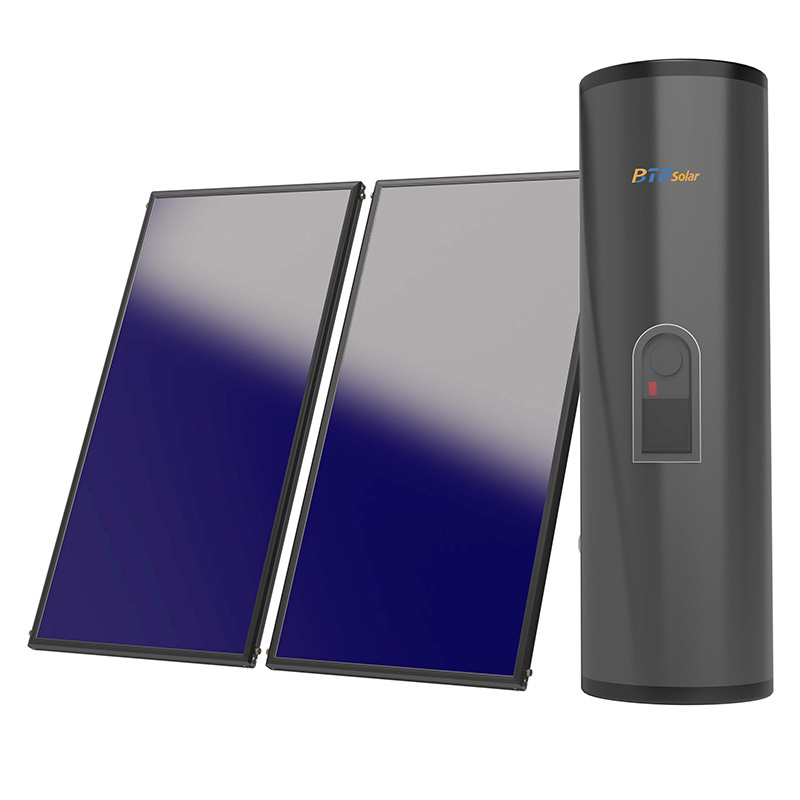

Split Type Solar Water Heating System
Key Advantages:
1. Superior Efficiency & Performance: High-performance flat plate collectors with selective absorption coating maximize heat absorption and minimize heat loss, ensuring hot water even on cloudy days.
2. Durable & Low Maintenance: Built with premium materials for exceptional corrosion resistance and a long service life.
3. Aesthetic & Flexible Installation: Sleek, low-profile collectors integrate seamlessly with modern rooftops. The split design offers flexibility in installation, the split design keeps the heavy tank indoors, protected from the elements.
4. Support large-capacity system customization
Product Introduction:
Our 300L Split Type Solar Water Heating System is an advanced, high-efficiency system designed to provide reliable and cost-effective domestic hot water for households, villas, hotels, and commercial applications. By leveraging cutting-edge flat plate collector technology and a robust split design, this system ensures superior performance even in diverse climatic conditions, significantly reducing your energy bills and carbon footprint.
300L Split Type Solar Water Heating System for new constructions or retrofitting existing homes, this system represents the perfect blend of innovation, durability and sustainability.
Working Principle:
split flat plate solar water heater operates on a forced circulation system:
1. Absorption: Sunlight is absorbed by black/blue coating collector, heating a special antifreeze fluid inside its copper tubes.
2. Pumped Circulation: A smart controller compares temperatures. When the collector is much hotter than the water tank, it triggers a pump.

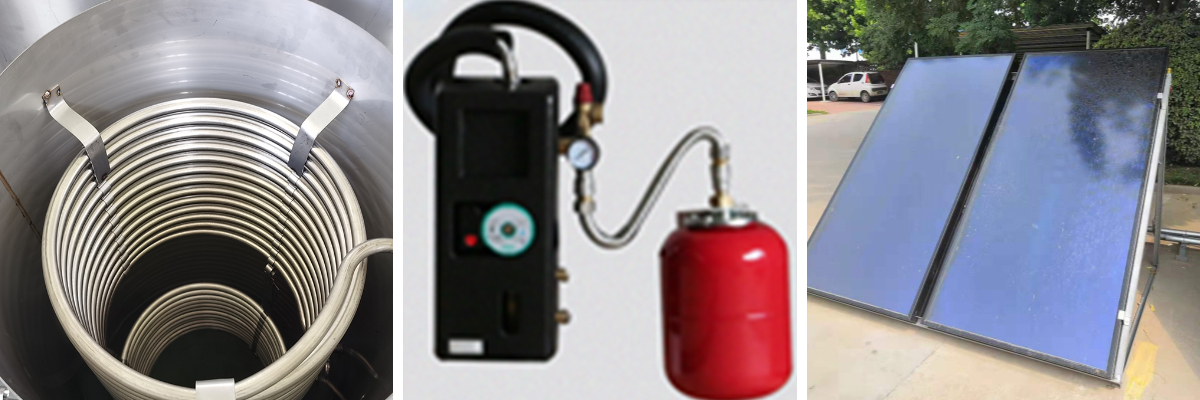

3. Heat Exchange: The pump circulates the hot fluid to a heat exchanger (coil) inside the storage tank. Heat is transferred to the domestic water, without the fluids ever mixing.
4. Return: The cooled fluid returns to the collector to be reheated, repeating the cycle until the entire tank of water is hot.
Product Parameter Table:
1. Flat Plate Solar Collector (Mounted outdoors on roof)；
2. Solar Storage Tank (Installed indoors)；
3. Controller & Pump Station.
Model | BTE-2.0 |
LxW xH(mm) | 2000x1000x80 |
Overall area(m2) | 2 |
Aperture area(m2) | 1.87 |
Rated working pressure (MPa) | 0.6 |
Interface size | G3/4 |
Number of connections | 4 |
Frame color | Black/Oxidized white |
Maxmum working temperature | 100°C |
Peak efficiency | 0.78 |
Rated efficiency | 0.53 |
Stainless Steel Water Tank
Model | 300 | 500 | 800 | 1000 |
Collector | BTE2.0(x3) | BTE2.0(x4) | BTE2.0(x8) | BTE2.0(x10) |
Length(mm) | 1740 | 1845 | 1720/1820 | 2000/2100 |
Inner Diameter (mm) | φ480 | φ580 | φ800 | φ800 |
Outer Diameter(mm) | φ580 | φ700 | φ900/1000 | φ900/1000 |
Insulation | PU foam 60 mm | PU foam 60 mm | PU foam 50/100 mm | PU foam 50/100 mm |
Inner tank material | SUS 304/SUS 316L | SUS 304/SUS 316L | SUS 304/SUS 316L | SUS 304/SUS 316L |
Outer tank materia | Colour-coatedsheet | Colour-coatedsheet | Colour-coatedsheet | Colour-coatedsheet |
Working pressure | 7 bar | 7 bar | 7 bar | 7 bar |
Electric heat element | 220V 1500W~3000W /110V 1500W | |||
Coil pipe material | Optional(copper/sus304/sus316) | |||
Coil size | φ12*1.0mm | |||

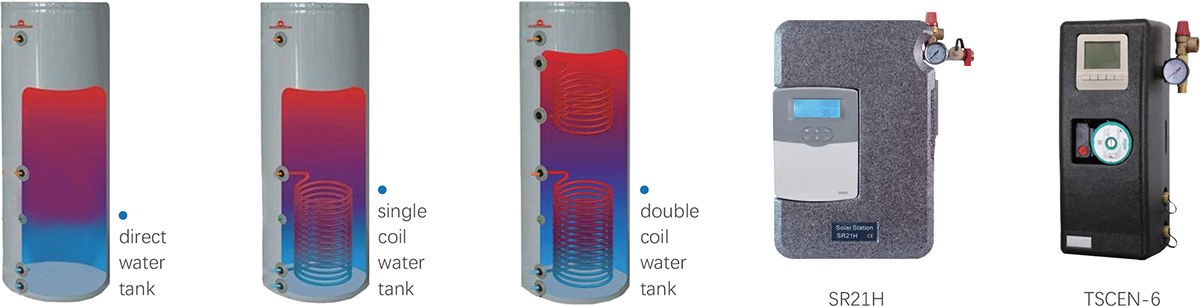

Exchange heat coil | None/Bottom coil/Upper coil and Bottom coil | |||
Expension tank | 12L | 24L | 50L | 50L |
Workstation:
Input | Pump | Rated Power | Controller | Dimension | |
SR21H | AC220V/110V，50Hz | Grundfos 15-65 130 | 60-100W | SR258 | 45x30x16cm |
TSCEN-6 | AC220V/110V，50Hz | Wilo ST20/11 | 165w | FTC-6 | 27×46×16cm |

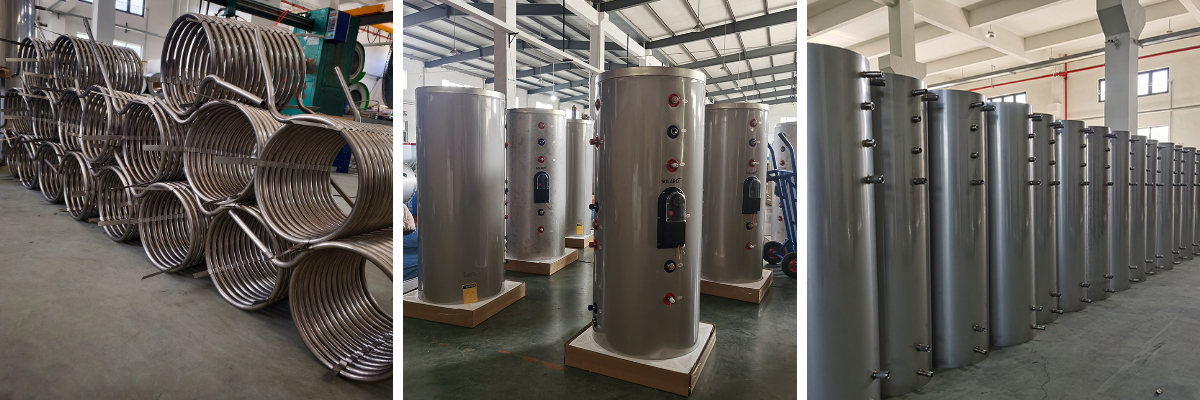

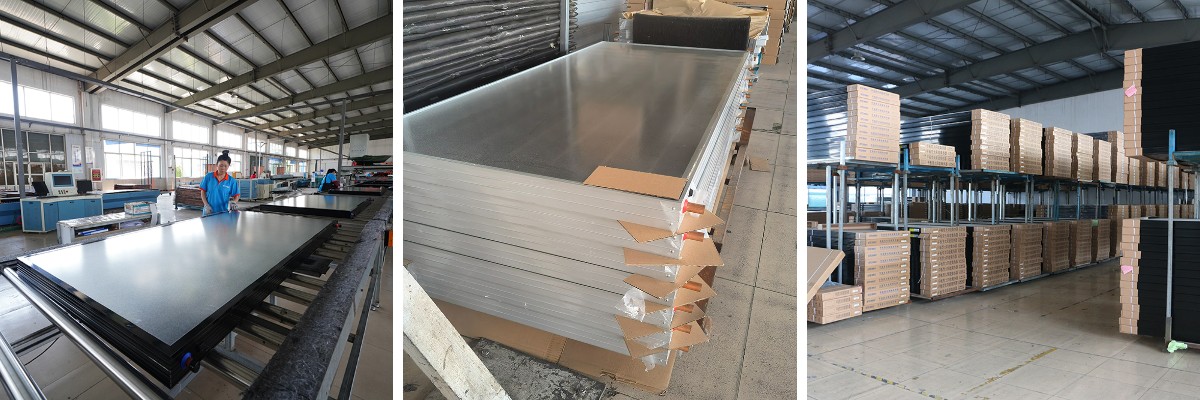

Production Details:
1. OEM & ODM Services: We offer full customization of design, capacity, and logo to meet your specific market requirements.
2. Over 15 Years of Manufacturing Experience: Deep expertise in solar thermal technology and production.
3. State-of-the-Art Production Facility: Equipped with automated production lines for consistent high quality (e.g., robotic welding, automatic PU foaming lines).
4. Stringent Quality Control: Every component and finished system undergoes rigorous testing to ensure performance, pressure resistance, and longevity.
5. Competitive Pricing: Direct factory prices without middlemen, offering the best value for your investment.
6. Comprehensive Support: We provide full technical documentation, installation manuals, and marketing materials to support our partners.

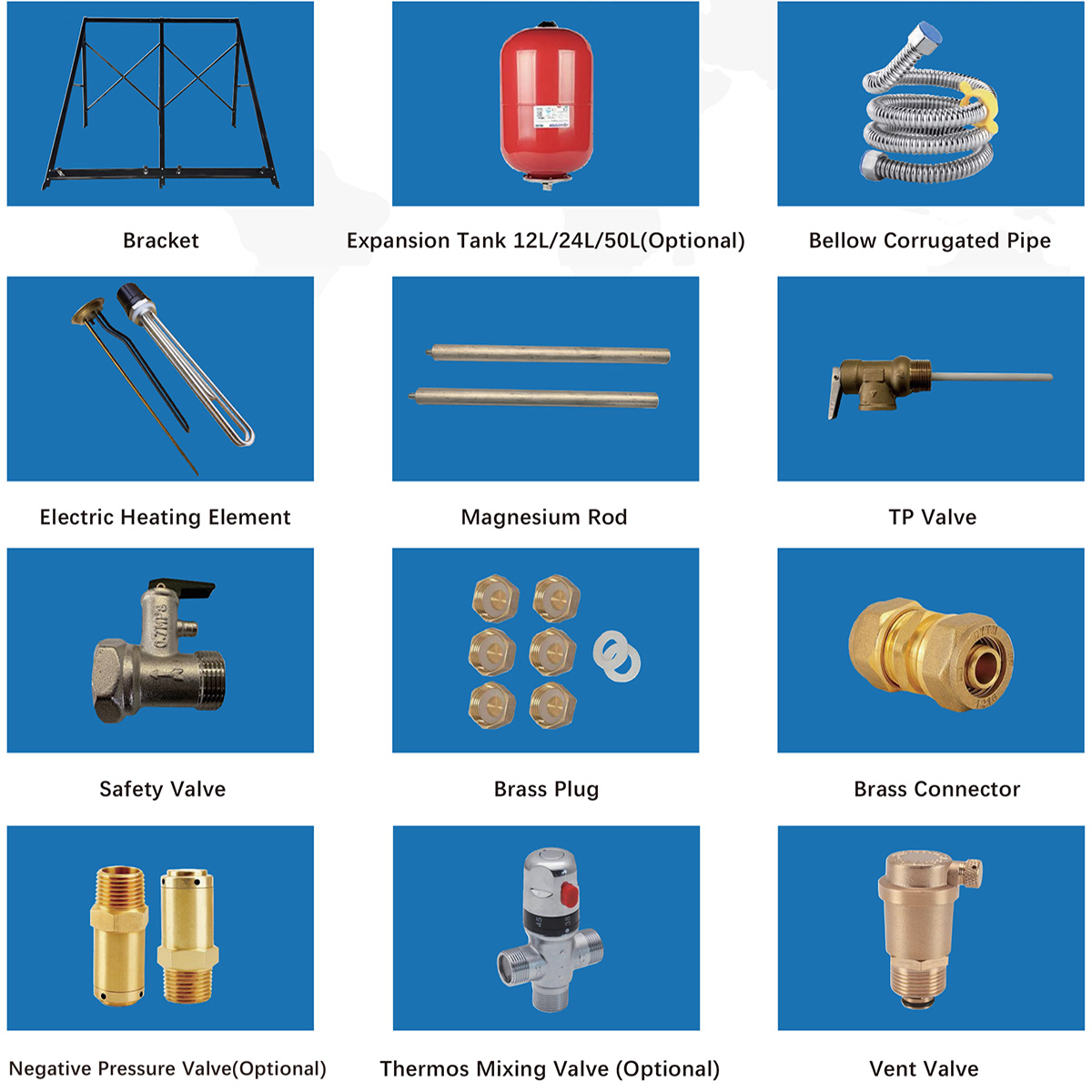

Accessories:
Packaging and transportation:
Samples: Wooden boxes, wooden pallets; LCL shipping by sea or air; FCL shipping by sea.

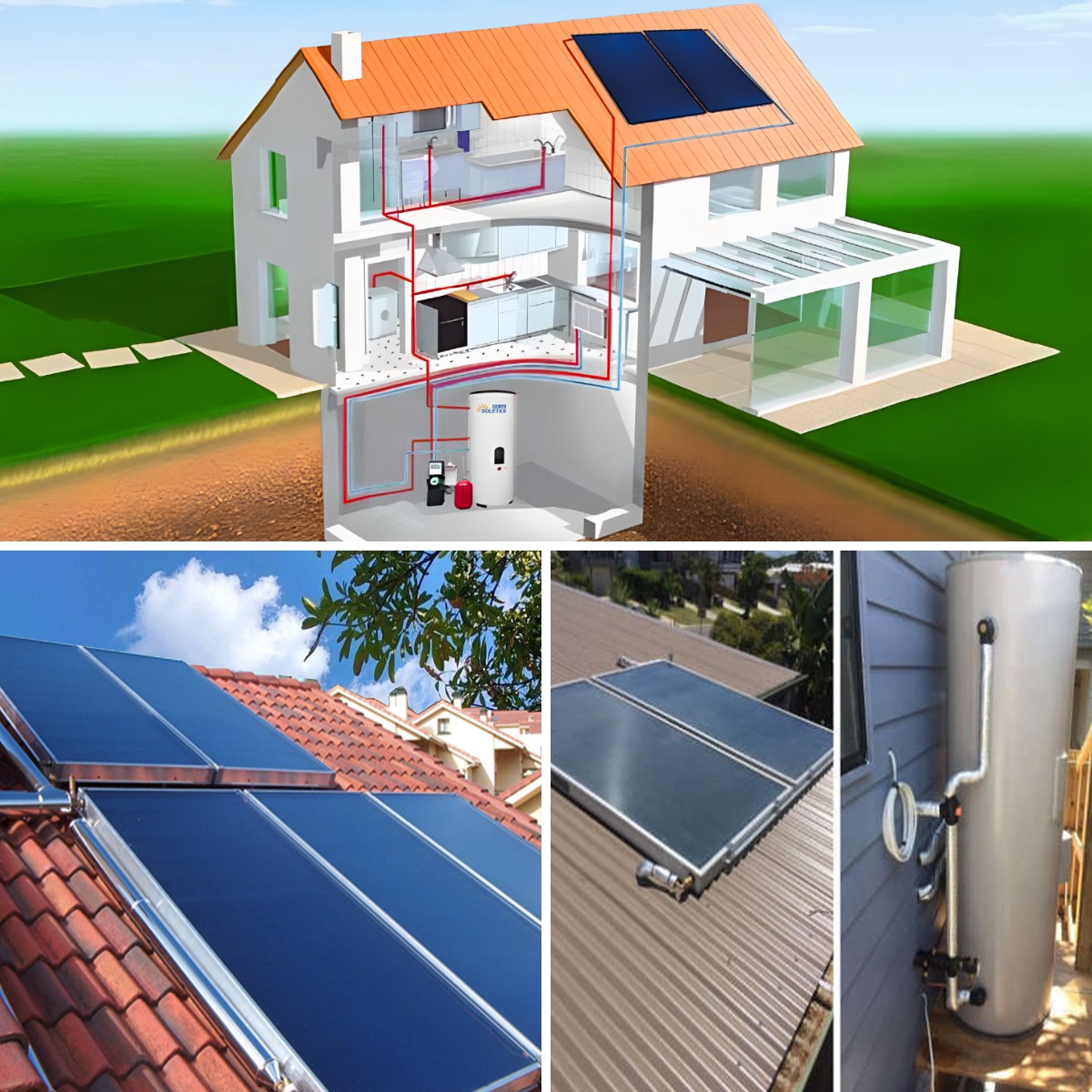

Application Cases:
1. Residential Homes & Villas: Perfect for meeting the daily hot water needs of medium to large families (4-6 persons).
2. Hotels & Resorts: Provide sustainable hot water for guest rooms, kitchens, and laundry facilities, reducing operational costs.
3. Spas & Gyms: Ensure a constant supply of hot water for showers, saunas, and pools.
4. Restaurants & Cafeterias: Reliable hot water for kitchen sanitation and cooking.
5. Hospitals & Dormitories: Ideal for applications with high, consistent hot water demand.
6. Agricultural & Industrial Pre-heating: Used to pre-heat water for various processes, saving conventional energy.
International Certification:
Global Export Expertise: Experienced in shipping and handling logistics worldwide, with products certified to international standards (CE, etc.).
