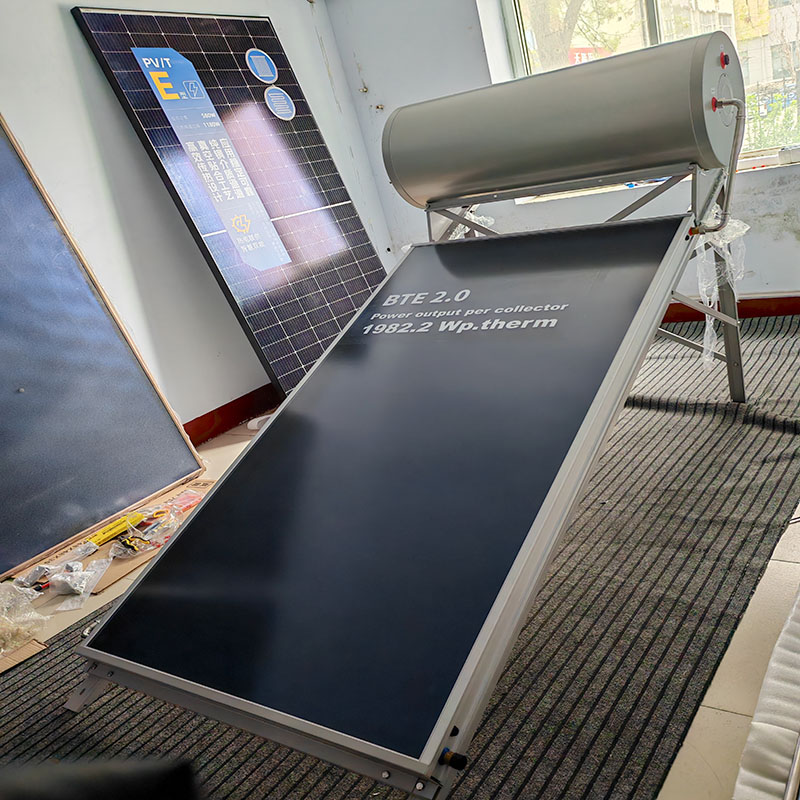

200L Solar Geyser

1. Enamel liner/ food-grade stainless steel liner , clean water and no pollution

2. Maintenance-free, long life, continuous high efficiency, cost-effective

3. Simple system and reliable operation

4. Enamel/stainless steel 150L, 200L, 300L systems meet different user needs in an all-round way

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Introduction:

Solar geyser system is one of common solar water heater for solar water heating system in home. It provides quality hot water with its new solar energy efficient flat plate design. This collector includes a selective coating to maximize the solar heat absorption, weather resistant aluminum framing and interior fiberglass insulation for increased efficiency.

Solar water heater for home or for commercial use. Wide range of applications

Solar water heating system are two three main parts which are water tank, flat plate solar collector and frame. Other spare parts: controller, electrical heating, connection pipes, screws and so on.

200L Solar Geyser

Product Parameters:

Technical parameters work reference, can understand the characteristics of our solar geyser system.

Flat Plate Solar Collector
Collector	BTE2.0-2	BTE2.5-2
Overall area(m2)	2.0	2.5
Aperture area	1.87	2.34
LxWxH(mm)	2000x1000x80	2000x1250x80
Optical performance	78%
Absorber sheet	Al,highly selective coating
Frame	Aluminium

Enamel Direct Solar Water Heater Tank
Model	BTE-ET-150	BTE-ET-200	BTE-ET-300
Collector	BTE2.0-2(x1)	BTE2.5-2(x1)	BTE2.0-2(x2)
Tank(L)	150	200	300
Dimensions	φ520*1300	φ580*1310	φ580*1830
Insulation	PU foam 50 mm
Working pressure	7 bar
Inner tank material	2.0mm	2.5mm enamelled
Outer tank material	Powder-coated steel
Auxiliary heating	1.5 KW	2.0 KW	2.0 KW
Corrosion protection	Magnesium anode
Mounting material	0/25%45°Galvanized sheet
