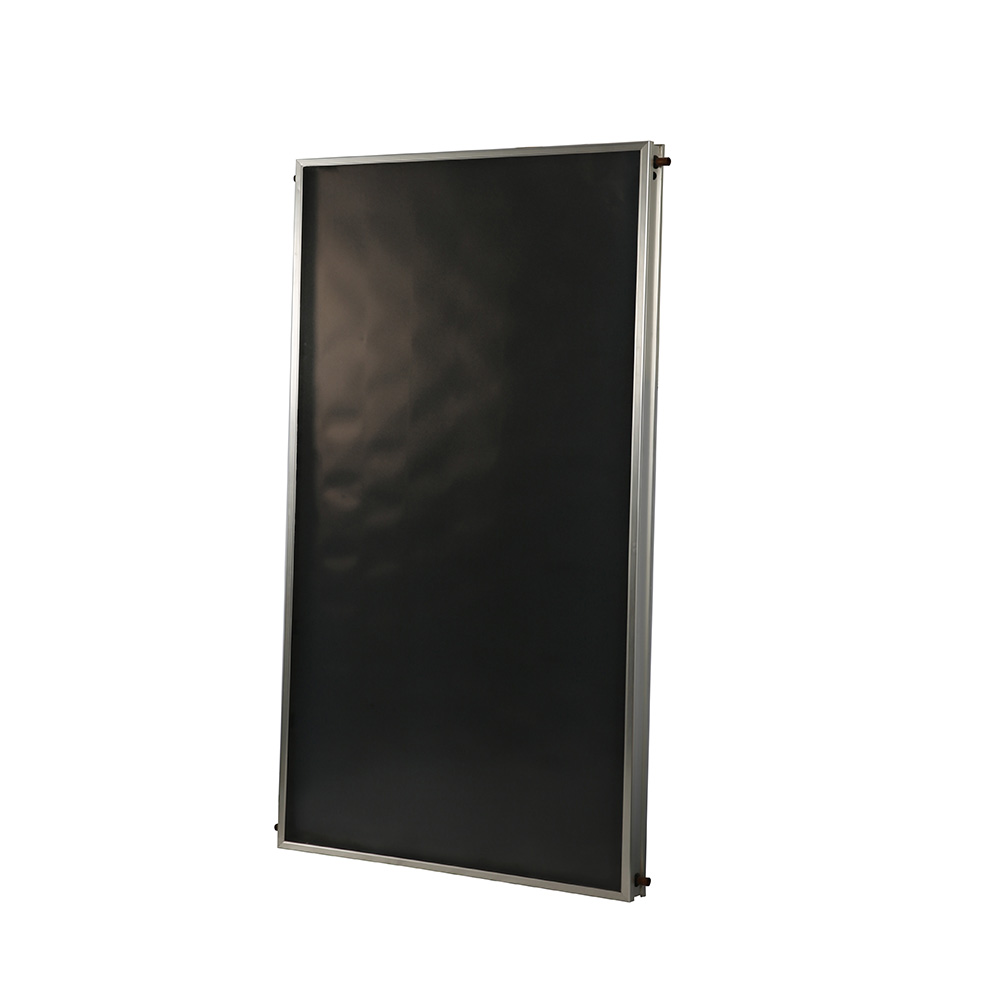

Flat Plate Solar Energy Collector
1. Rapid heat transfer using copper riser tubes and aluminum fins for excellent conductivity.
2. Stable operation even under low radiation or cloudy weather conditions.
3. Long lifespan with proven field performance of over 20 years in various climates.
4. Minimal maintenance required due to simple structure and robust components.
Product Introduction:
The BTE Flat Plate Collector offers a dependable solar thermal solution engineered with precision. Its selective absorber layer ensures superior thermal conductivity and corrosion resistance, delivering stable performance in both homes and businesses.
Low-iron glass provides exceptional solar transmission, while the collector’s streamlined design minimizes thermal losses and ensures durability. Whether under harsh sun or cold conditions, the system adapts seamlessly to different installation environments.
The collector can be customized by size, material, and technical specifications to suit specific project demands. It is well-suited for domestic water heating and centralized heating applications, supporting environmentally responsible energy strategies.
Applicable Scene:
Household solar water heating and commercial heating installations.
Product parameter table:
Model | BTE-2.0 | BTE-2.5 | |
L x W x H(mm) | 2000x1000x80 | 2000x1250x80 | |
Overall area(m2 ) | 2.0 | 2.5 | |
Aperture area(m2 ) | 1.87 | 2.34 | |
Rated working pressure（MPa） | 0.6 | ||
Interface size | G3/4’’ | ||
Number of connections | 4 | ||
Frame color | Black/Oxidized white | ||
Maximum working temperature | 100°C | ||
Peak efficiency | 0.78 | ||
Rated efficiency ① | 0.53 | ||
Rated power(W)② | 400W/m² | 80.4 | 104.5 |
700W/m² | 512.4 | 665.8 | |
1000W/m² | 991.1 | 1287.9 | |
Note :
① Rated efficiency: The total irradiance on the daylighting surface of the collector is 1000W/㎡, and the temperature difference between the average temperature of the collector and the ambient air temperature is 50°C. Calculate the efficiency value of the solar collector according to the instantaneous efficiency equation of the collector's daylighting area.
② Rated power: The total irradiance of the collector lighting plane is 1000w/㎡, and the collector power when the temperature difference between the average collector temperature and the ambient air temperature is 50 ° C is equal to the product of the rated efficiency and theday lighting area and 1000W/㎡.
Project Cases:
Company Profile:
BTE, founded in 2009 and based in Shandong, China, is a leading solar thermal manufacturer with more than 820,000㎡ annual capacity. Our global presence spans 65 countries, delivering top-quality solar technology and solutions.
Honors and Qualifications:
