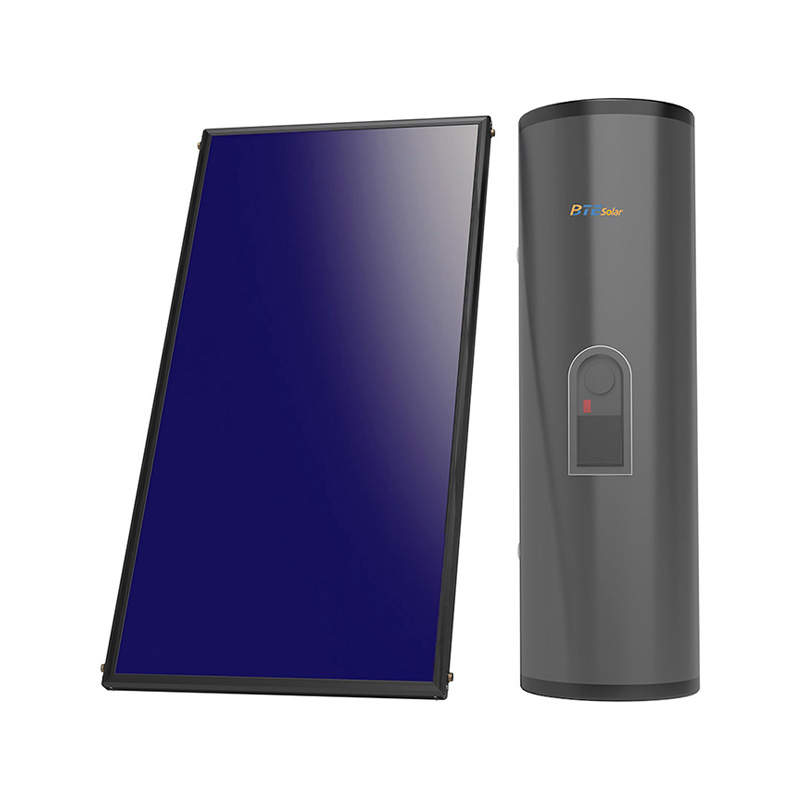

Split Solar Power Water Heater
Advantage:
1. Food-grade stainless steel liner, clean water and no pollution
2. Using medium circulation, it can still be used normally in cold areas
3. The water tank can be placed indoors, safe to use and easy to maintain
4. Simple operation and long service life
Product features:
Split Solar Water Heater-Suitable for villas and projects, with a maximum capacity of up to 1000L.
Split solar system has the characteristics of sufficient water, multi-point water supply, energy saving and safety, as well as outstanding comprehensive advantages in terms of economic cost and social benefits. It is a more effective hot water supply technology to alleviate the energy crisis and is more suitable for application and promotion in solar building integration projects.
It breaks the limitation that solar energy can only be installed on flat roofs, greatly expanding the scope of solar energy use.
Work Principle:

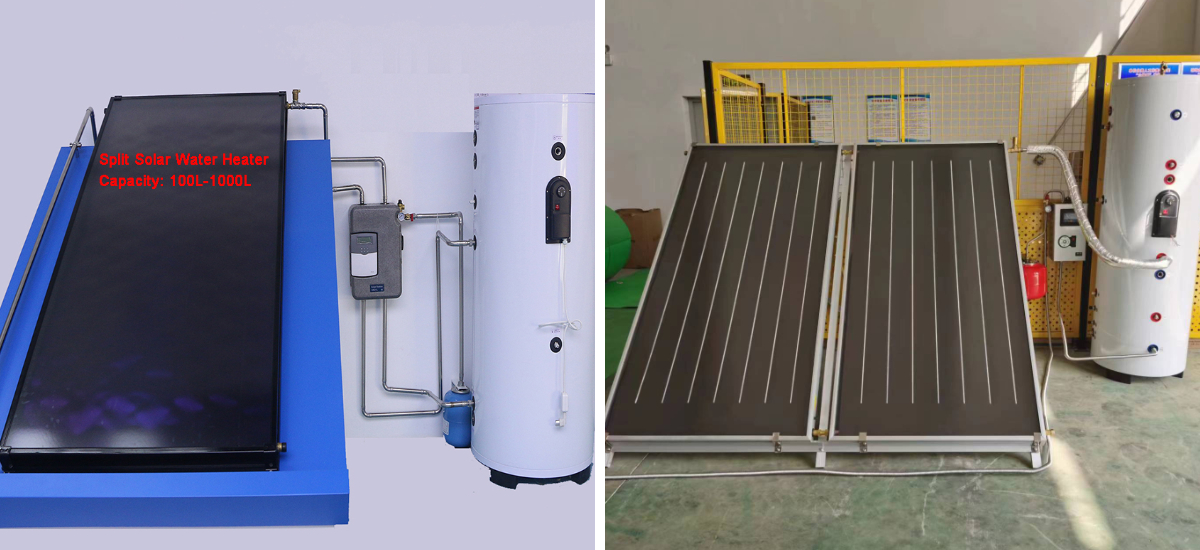

Split solar water heater is a building-integrated hot water supply system that uses pump forced circulation technology to transfer heat. It consists of a separate collector and a water storage tank. It is suitable for installation in multiple scenarios such as balconies, walls, and sloping roofs, and is especially suitable for users on non-top floors of high-rise buildings.
Adopt the temperature difference circulation, controller operates whole system automatically
1. Pump will start circulation when temperature difference between collector and water reaches the set value.
2. Pump will stop circulation once the temperature difference lower than set value.
3. The circulation pump makes heat-conducting liquid circulate
automatically
4. The heat-conducting liquid transfers heat to the water tank by copper heat exchange.
5. Assistant heating element will start if hot water does not reach set value.
Product Parameter Table:
Different size have different accessories, 150/200/300/500/1000/2000L , all size we can prepare stock with 2 weeks.
Model | BTE-2.0 |
LxW xH(mm) | 2000x1000x80 |
Overall area(m2) | 2 |
Aperture area(m2) | 1.87 |
Rated working pressure (MPa) | 0.6 |
Interface size | G3/4 |
Number of connections | 4 |
Frame color | Black/Oxidized white |
Maxmum working temperature | 100°C |
Peak efficiency | 0.78 |
Rated efficiency | 0.53 |

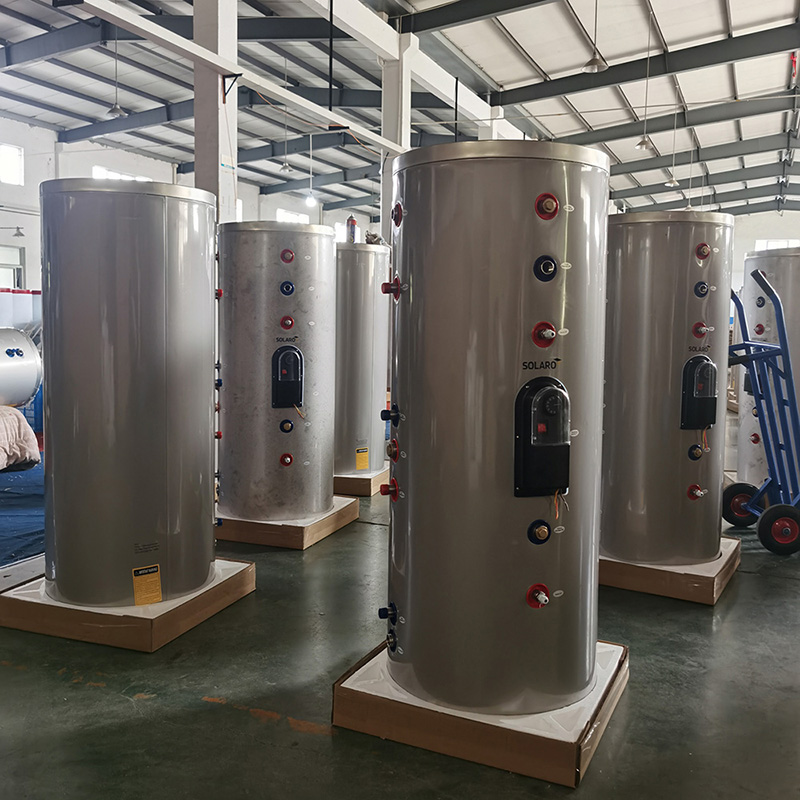

Stainless Steel Water Tank
Model | 300 | 500 | 800 | 1000 |
Collector | BTE2.0(x3) | BTE2.0(x4) | BTE2.0(x8) | BTE2.0(x10) |
Length(mm) | 1740 | 1845 | 1720/1820 | 2000/2100 |
Inner Diameter (mm) | φ480 | φ580 | φ800 | φ800 |
Outer Diameter(mm) | φ580 | φ700 | φ900/1000 | φ900/1000 |
Insulation | PU foam 60 mm | PU foam 60 mm | PU foam 50/100 mm | PU foam 50/100 mm |
Inner tank material | SUS 304/SUS 316L | SUS 304/SUS 316L | SUS 304/SUS 316L | SUS 304/SUS 316L |
Outer tank materia | Colour-coatedsheet | Colour-coatedsheet | Colour-coatedsheet | Colour-coatedsheet |
Working pressure | 7 bar | 7 bar | 7 bar | 7 bar |
Electric heat element | 220V 1500W~3000W /110V 1500W | |||
Coil pipe material | Optional(copper/sus304/sus316) | |||
Coil size | φ12*1.0mm | |||
Exchange heat coil | None/Bottom coil/Upper coil and Bottom coil | |||
Expension tank | 12L | 24L | 50L | 50L |
Workstation:
Input | Pump | Rated Power | Controller | Dimension | |
SR21H | AC220V/110V，50Hz | Grundfos 15-65 130 | 60-100W | SR258 | 45x30x16cm |
TSCEN-6 | AC220V/110V，50Hz | Wilo ST20/11 | 165w | FTC-6 | 27×46×16cm |
We can provide to our customer the full scale service:
The pre-sale service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell gypsum decoration, we cherish every order from our honor.
Accessories:
Packaging and transportation:
Samples: Wooden boxes, wooden pallets; LCL shipping by sea or air; FCL shipping by sea.
Application Cases:
Solar water heating is the conversion of sunlight into heat for water heating using a solar thermal collector, Solar water heaters use the solar energy from the sun to generate heat (not electricity) which can then be used to heat water for showering, space heating, industrial processes.
• Combined with solar heation system, heat pump, electrical heater and other heating source
• Use the Sun to Heat Your Water to save your energy costs;
• Heating element back-up;
• Optional coils to fast the efficiency of heat transferring;
• Optional water connections according to customers requests;
• High dencity polyurethane foam reduces heat loss and energy costs for maximum efficiency
Certificates:
Our products have passed Solar Keymark, CE, ISO and other certifications. Below are our individual product certificates.
