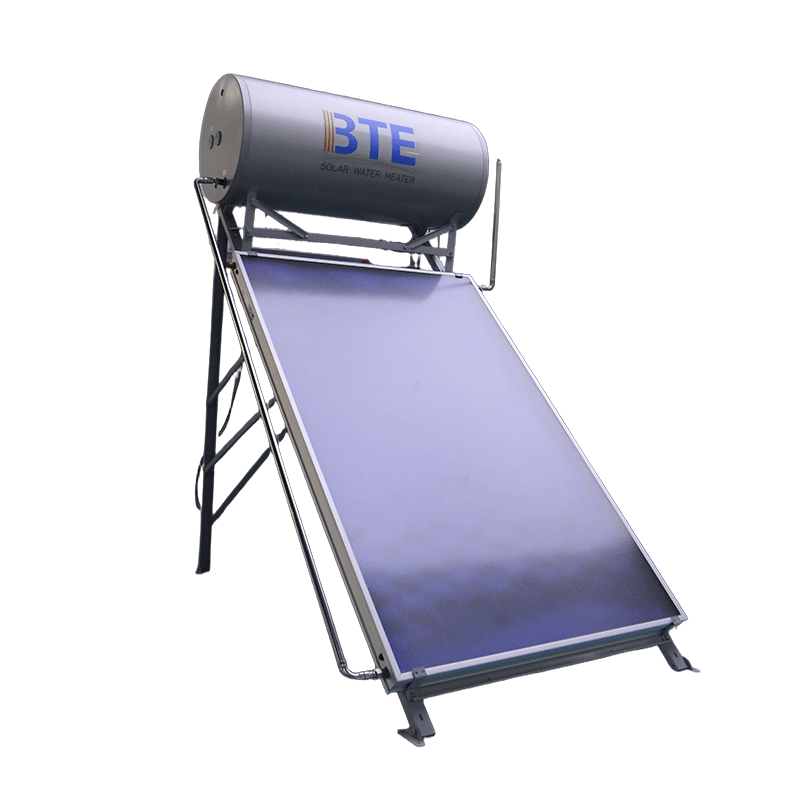

Enamel Direct Flat Plate Solar Water Heater
1. Simple and efficient, natural circulation, low maintenance cost, less failure points
2. Enamel liner clean water and no pollution
3. Maintenance-free, long life, continuous high efficiency, cost-effective
4. Simple system and reliable operation
5. Enamel 150L, 200L, 300L
Enamel Direct Flat Plate Pressurized Solar Water Heater:
The Enamel Direct Flat Plate Solar Water Heater offers a simple and efficient solution for domestic hot water needs. With a natural circulation system, it operates without the need for pumps or complex controls, resulting in low maintenance costs and fewer failure points. Its direct heating design ensures fast thermal response, making it a reliable choice for homes in various climates.
Equipped with a high-quality enamel-lined water tank, the system guarantees clean, hygienic water with zero contamination risk. Engineered for maintenance-free operation, it delivers long service life and consistently high thermal efficiency—offering outstanding performance and value.
Available in 150L, 200L, and 300L capacities, the system is designed to meet diverse household demands. Its simple structure and proven durability make it ideal for homeowners seeking a cost-effective, sustainable water heating solution. Easy to install and built to last, it leverages solar power to reduce energy bills and carbon emissions—an intelligent upgrade for eco-conscious modern living.
Product Structure And Schematic Diagram:
A labeled diagram of a Solar Water Tank system, divided into three main sections. The T.P Valve section includes components such as a Thread head, Tempered Glass, Insulation , Riser Pipe, and Header Pipe.
Product Parameter:
Collector | BTE2.0-2 | BTE2.5-2 |
Overall area(m2) | 2.0 | 2.5 |
Aperture area | 1.87 | 2.34 |
LxWxH(mm) | 2000x1000x80 | 2000x1250x80 |
Optical performance | 78% | |
Absorber sheet | Al,highly selective coating | |
Enamel direct solar water heater:
Model | BTE-ET-150 | BTE-ET-200 | BTE-ET-300 |
Collector | BTE2.0-2(x1) | BTE2.5-2(x1) | BTE2.0-2(x2) |
Tank(L) | 150 | 200 | 300 |
Dimensions | φ520*1300 | φ580*1310 | φ580*1830 |
Insulation | PU foam 50 mm | ||
Working pressure | 7 bar | ||
Inner tank material | 2.0mm | 2.5mm enamelled | |
Outer tank material | Powder-coated steel | ||
Auxiliary heating | 1.5 KW | 2.0 KW | 2.0 KW |
Corrosion protection | Magnesium anode | ||
Mounting material | 0/25%45°Galvanized sheet | ||
Accessories & Fittings:
Application:
1. Residential Water Heating
Flat plate photo voltaic water heaters are extensively used in houses for day by day warm water desires such as bathing, cooking, and cleaning. Their easy structure, low maintenance, and cost-efficiency make them perfect for home installations, particularly in sunny regions. They assist house owners store notably on electrical energy or gasoline payments over time.
2. Hotels & Resorts
Large-scale flat plate structures are regularly hooked up in motels and accommodations to furnish warm water for visitor rooms, spas, and kitchens. By harnessing photo voltaic energy, these organizations decrease their operational fees and promote eco-friendly practices, which can be a sturdy promoting factor for environmentally aware guests.
3. Hospitals & Healthcare Facilities
Hospitals require a non-stop provide of warm water for sterilization, laundry, bathing, and kitchen operations. Flat plate photo voltaic water heaters provide a dependable and hygienic answer whilst decreasing reliance on traditional electricity sources, assisting healthcare vendors function greater sustainably.
4. Schools & Dormitories
In boarding schools, universities, and different academic institutions, flat plate photo voltaic water heaters furnish warm water for dormitories, canteens, and washrooms. This promotes inexperienced power attention amongst college students whilst decreasing utility prices for the institution.
5. Industrial Applications
Flat plate structures can additionally aid low-temperature industrial techniques like cleaning, preheating boiler feed water, or chemical preparation. Industries that use large quantities of warm water can advantage from stable, renewable warmth sources whilst reducing down carbon emissions.
Water heater systems scene section:
Company Profile:
Founded in 2009 and headquartered in Shandong Province, China, BTE is a technology-driven enterprise dedicated to advancing the core technologies of flat-plate solar collectors, solar water heaters, and integrated heating systems. With over two decades of experience in clean solar energy, BTE has an annual production capacity of 820,000 square meters of flat-plate collectors and proudly serves customers in more than 65 countries worldwide.
