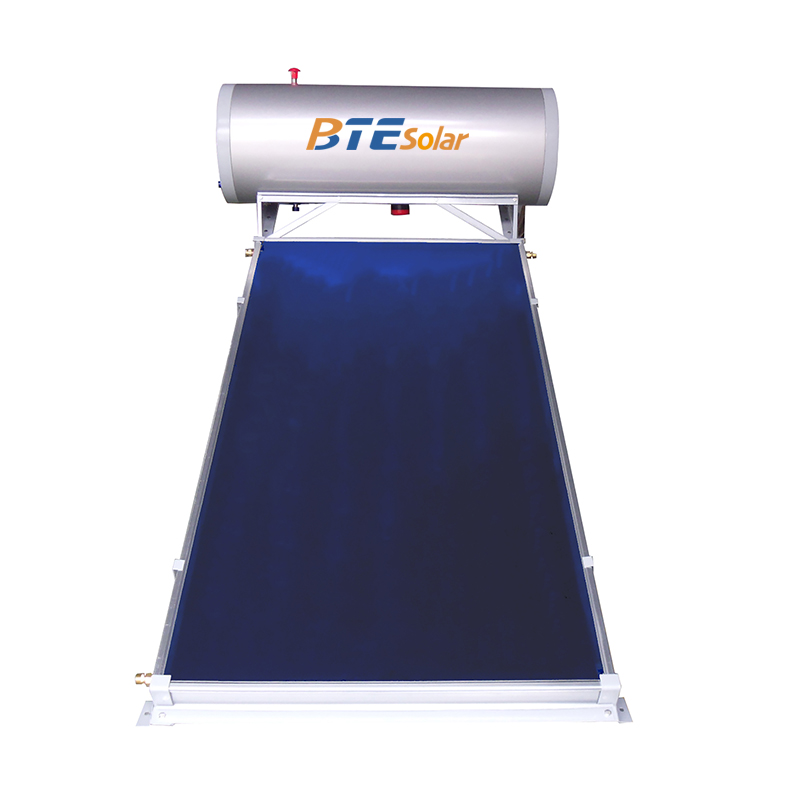

Power Thermo Solar Heater
1. Flat plate collectors with high weather-proof selective absorbing film from full-automatic magnetron sputtering production line developed by BTE;
2. Simple structure, easy to assembly and install in short time, no breakage;
3. The solar water heater can be used all year round in the cold climate;
4. The solar water heater can be used together with auxiliary electric boost;
5. Multiple capacity options - 150L/200L/300L enamel/stainless steel liner system is provided to meet different needs in all aspects
Power Thermo Solar Heater - Product Details
Power Thermo Solar Heater is an efficient and intelligent solar hot water system that combines vacuum tube heat collection technology and electric/gas assisted heating to ensure stable and energy-efficient hot water supply in various climatic conditions. Suitable for various scenarios such as homes, hotels, schools, hospitals, etc.
This system features a high-quality enamel-lined water tank, which guarantees clean water with no risk of contamination. Designed for maintenance-free operation, the Power Thermo Solar Heater provides long service life and consistent high thermal efficiency, delivering both performance and value. Available in 150L, 200L, and 300L sizes, it suits a range of household capacities.
Water tank capacity 150L/200L/300L/500L (customizable).
Product Structure And Schematic Diagram:
A labeled diagram of a Solar Water Tank system, divided into three main sections. The T.P Valve section includes components such as a Thread head, Tempered Glass, Insulation , Riser Pipe, and Header Pipe.
Product Parameter:
Model | BTE-ET-150 | BTE-ET-200 | BTE-ET-300 |
Collector | BTE2.0-2(x1) | BTE2.5-2(x1) | BTE2.0-2(x2) |
Tank(L) | 150 | 200 | 300 |
Dimensions | φ520*1300 | φ580*1310 | φ580*1830 |
Insulation | PU foam 50 mm | ||
Working pressure | 7 bar | ||
Inner tank material | 2.0mm | 2.5mm enamelled | |
Outer tank material | Powder-coated steel | ||
Auxiliary heating | 1.5 KW | 2.0 KW | 2.0 KW |
Corrosion protection | Magnesium anode | ||
Mounting material | 0/25%45°Galvanized sheet | ||
Accessories & Fittings:
Application:
Global climate, multi domain, intelligent solar hot water solution.
✔ 200+engineering cases verified reliability
✔ Support customized scenario specific solutions
Honors and Qualifications:
Solar Industry Certification · International Standard Water Heater.
Company Profile:
Dezhou BTE Solar New Energy is mainly engaged in the export business of the Soletks group's products. It is a backbone export enterprise in the solar energy industry in Shandong Province, a key foreign trade export enterprise in Dezhou City. There are 6 production bases and 7 branches . Now solar collector annual output can reach 3 GWh. Ranking the 3rd in the world for three consecutive years from 2017 to 2019, and the 2nd from 2020 to 2021.
BTE has always regarded technological innovation as the core competitiveness of the enterprise. It has 4 technical departments, 1 flat panel research institute.1 testing center and 1 thermal energy Institute. The scientific research personnel account for 16%, of which 50% have been in this field for more than 20 years.
At present, we has 58 core patents. Now solar collectors can use civil buildings, military facilities, industrial heating, planting, breeding, drying and other fields to provide high-quality thermal energy, heating, refrigeration, heating and other clean energy comprehensive utilization services.
