Solar Heater For Home
1.Corrosion resistance
The Solar Water Heater Price 250 Litres shell of the flat solar collector is made of marine-grade aluminum alloy plates to protect the entire system from corrosion caused by harsh external climates such as acid rain. The water tank liner uses the world's most advanced ceramic powder sintering process to form a special glaze layer, and has a built-in magnesium anode rod to prevent corrosion.
2.Fully automatic control
Temperature difference cycle, fully automatic control, on rainy days, the controller is used to supplement heat energy with auxiliary energy to maintain water temperature. 24 hours, 365 days, hot water is continuous.
Product Introduction:

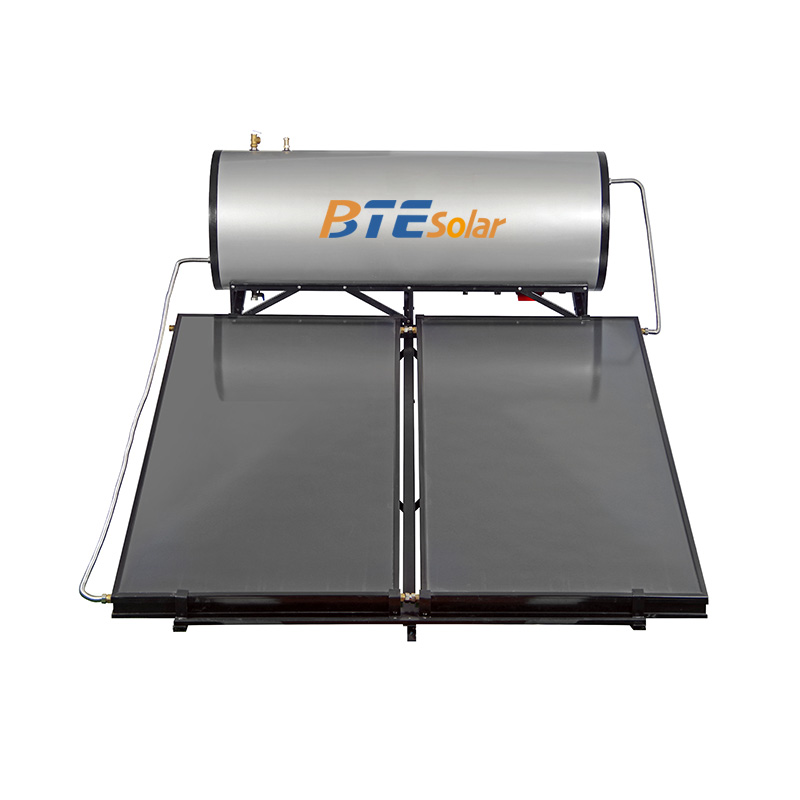

Flat-plate solar water heater are designed and developed for small high-rise residential buildings. The water tank is placed on the balcony, roof, wall and other places. The flat-plate solar collector is placed on the balcony, window, roof and wall of the south facade of the building, which makes up for the regret that traditional solar water heaters cannot be integrated with the building and the environment due to their inherent deficiencies. The collector and the water tank are separated from each other. The collector can be flexibly installed on the roof, skylight, balcony or wall without being restricted by the location, achieving an integrated combination with the high-rise building and the environment.
Product Parameters:
Engineered for peak performance and durability, our flat panel solar geyser integrates cutting-edge technology with user-centric design.
Collector | BTE2.0-2 | BTE2.5-2 |
Overall area(m2) | 2.0 | 2.5 |
Aperture area | 1.87 | 2.34 |
LxWxH(mm) | 2000x1000x80 | 2000x1250x80 |
Optical performance | 78% | |
Absorber sheet | Al,highly selective coating | |
Frame | Aluminium | |
Enamel Direct Solar Water Heater Tank | |||
Model | BTE-ET-150 | BTE-ET-200 | BTE-ET-300 |
Collector | BTE2.0-2(x1) | BTE2.5-2(x1) | BTE2.0-2(x2) |
Tank(L) | 150 | 200 | 300 |
Dimensions | φ520*1300 | φ580*1310 | φ580*1830 |
Insulation | PU foam 50 mm | ||
Working pressure | 7 bar | ||
Inner tank material | 2.0mm | 2.5mm enamelled | |
Outer tank material | Powder-coated steel | ||
Auxiliary heating | 1.5 KW | 2.0 KW | 2.0 KW |
Corrosion protection | Magnesium anode | ||
Mounting material | 0/25%45°Galvanized sheet | ||
Product production line:
We have passed CE and solar keymark certificate
More than 15 years factory experirnce
Fast delivert within 15 days
Accessories:

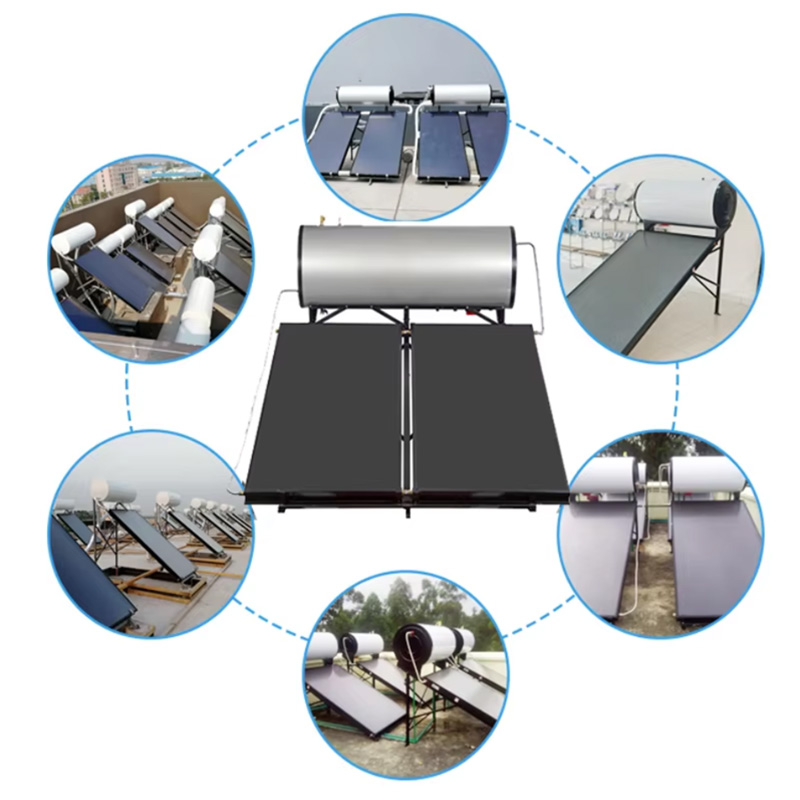

Scenario application:
Flat-plate solar collectors are already a very advanced and mature solar energy application technology, and are widely used in factories, stadiums, hotels, villas other.
Honors and Qualifications:
Company Profile:
Dezhou BTE Solar New Energy is mainly engaged in the export business of the group's products. It is a backbone export enterprise in the solar energy industry in Shandong Province, a key foreign trade export enterprise in Dezhou City. There are 6 production bases and 7 branches . Now solar collector annual output can reach 3 GWh. Ranking the 3rd in the world for three consecutive years from 2017 to 2019, and the 2nd from 2020 to 2021.
BTE has always regarded technological innovation as the core competitiveness of the enterprise. It has 4 technical departments, 1 flat panel research institute.1 testing center and 1 thermal energy Institute. The scientific research personnel account for 16%, of which 50% have been in this field for more than 20 years.
At present, we has 58 core patents. Now solar collectors can use civil buildings, military facilities, industrial heating, planting, breeding, drying and other fields to provide high-quality thermal energy, heating, refrigeration, heating and other clean energy comprehensive utilization services.
