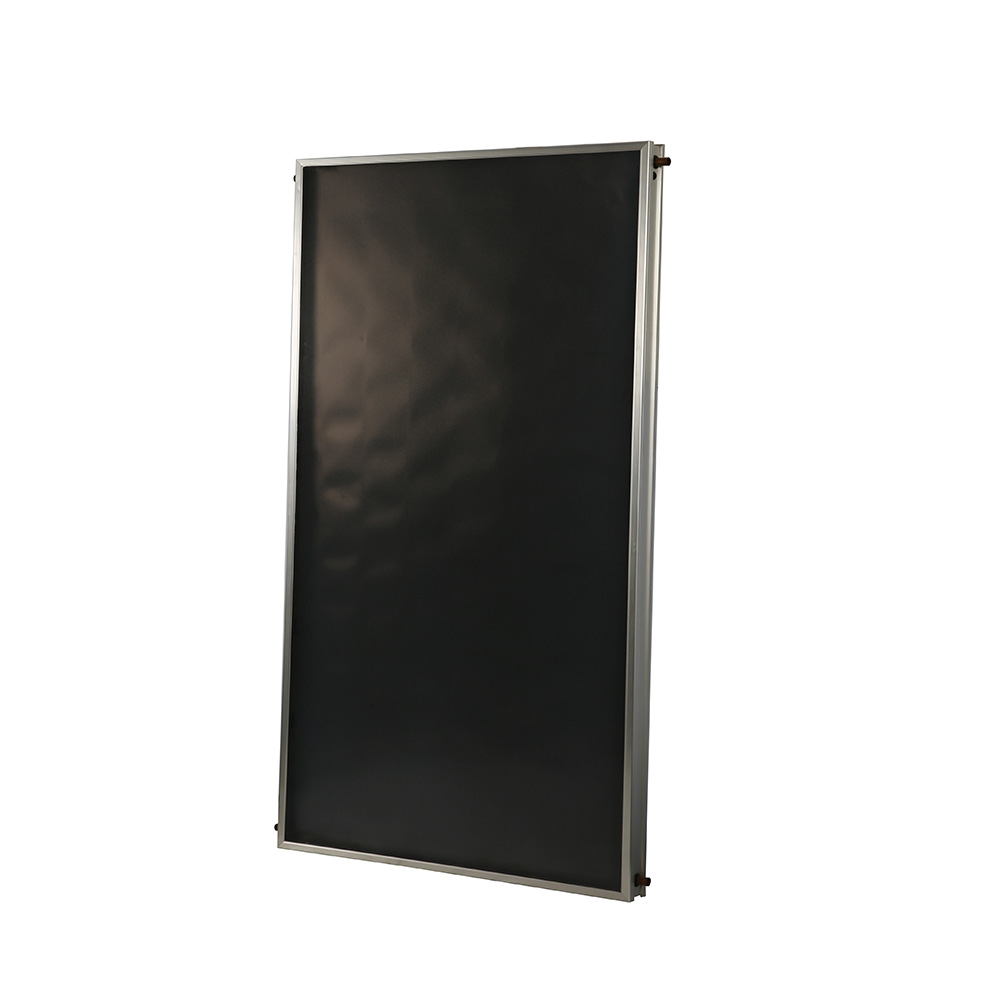

Solar Thermal Flat Plate Collector

1. High thermal efficiency with selective coating that ensures optimal solar energy absorption.

2. Low heat loss thanks to full-plate ultrasonic welding and thick insulation layer.

3. Slim and compact design fits well in both residential and commercial rooftops.

4. Durable aluminum alloy frame with anodized surface for enhanced corrosion resistance.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Introduction:

The Flat Plate Solar Collector is built for lasting reliability, featuring a premium surface coating that offers outstanding thermal endurance and corrosion protection.
Designed to perform under harsh environmental conditions, it ensures stable heat output for both home and commercial water heating systems, helping users reduce energy bills.
The unit includes toughened low-iron glass with excellent solar transmittance, boosting efficiency while withstanding impact and weathering.
Its integrated structure reduces thermal losses, delivering effective performance across a range of installation sites and climates.
Custom-tailoring is available to meet the specific requirements of each project.
This collector is an optimal solution for domestic and industrial solar heating, promoting long-term sustainability and energy savings.

Flat Plate Solar Collector

Applicable Scene:

Residential hot water supply, commercial solar heating networks.

Product parameter table:

Model		BTE-2.0	BTE-2.5
L x W x H(mm)		2000x1000x80	2000x1250x80
Overall area(m2 )		2.0	2.5
Aperture area(m2 )		1.87	2.34
Rated working pressure（MPa）		0.6
Interface size		G3/4’’
Number of connections		4
Frame color		Black/Oxidized white
Maximum working temperature		100°C
Peak efficiency		0.78
Rated efficiency ①		0.53
Rated power(W)②	400W/m²	80.4	104.5
	700W/m²	512.4	665.8
	1000W/m²	991.1	1287.9

Note :

① Rated efficiency: The total irradiance on the daylighting surface of the collector is 1000W/㎡, and the temperature difference between the average temperature of the collector and the ambient air temperature is 50°C. Calculate the efficiency value of the solar collector according to the instantaneous efficiency equation of the collector's daylighting area.

② Rated power: The total irradiance of the collector lighting plane is 1000w/㎡, and the collector power when the temperature difference between the average collector temperature and the ambient air temperature is 50 ° C is equal to the product of the rated efficiency and theday lighting area and 1000W/㎡.

Project Cases:

Flat Plate Solar Collector

Company Profile:

Founded in 2009 in Shandong, China, BTE Solar specializes in flat plate solar collectors, solar heaters, and integrated thermal solutions. With an annual capacity of 820,000㎡, BTE serves clients in 65+ countries, delivering top-tier solar thermal components globally.
