200L Solar Water Heater
Product Advantages:
1. Lower Energy Bills: Self-sustaining on sunny days.
2. Lifetime Enamel Tank Protection: Ceramic-fused coating resists scaling/corrosion in hard water, replaceable magnesium anode.
3. Strong Water Pressure: Powerful showers, equivalent to city mains pressure.
4. Installation: Modular design fits standard roof mounts with no electrical rewiring.
Product Introduction:
Enamel 200L Solar Water Heater: Pressurized System; 80% Energy Savings.
Our enamel-lined 200L solar water heater delivers 24/7 pressurized hot water for 4-person households using zero electricity. With military-grade anti-corrosion technology and frost-resistant heat pipes (-30°C), it cuts energy bills by 80% while outperforming stainless steel tanks by 3x lifespan. Certified to EN 12975 & ISO 9001.
Technical Highlights:
Enamel 200L Solar Water Heater Circulation Tech: Closed-loop heat exchange separates antifreeze fluid (primary loop) from domestic water, preventing limescale buildup while enabling pressurized output. Enamel tank lining fused at 850°C withstands chloride corrosion in coastal areas.

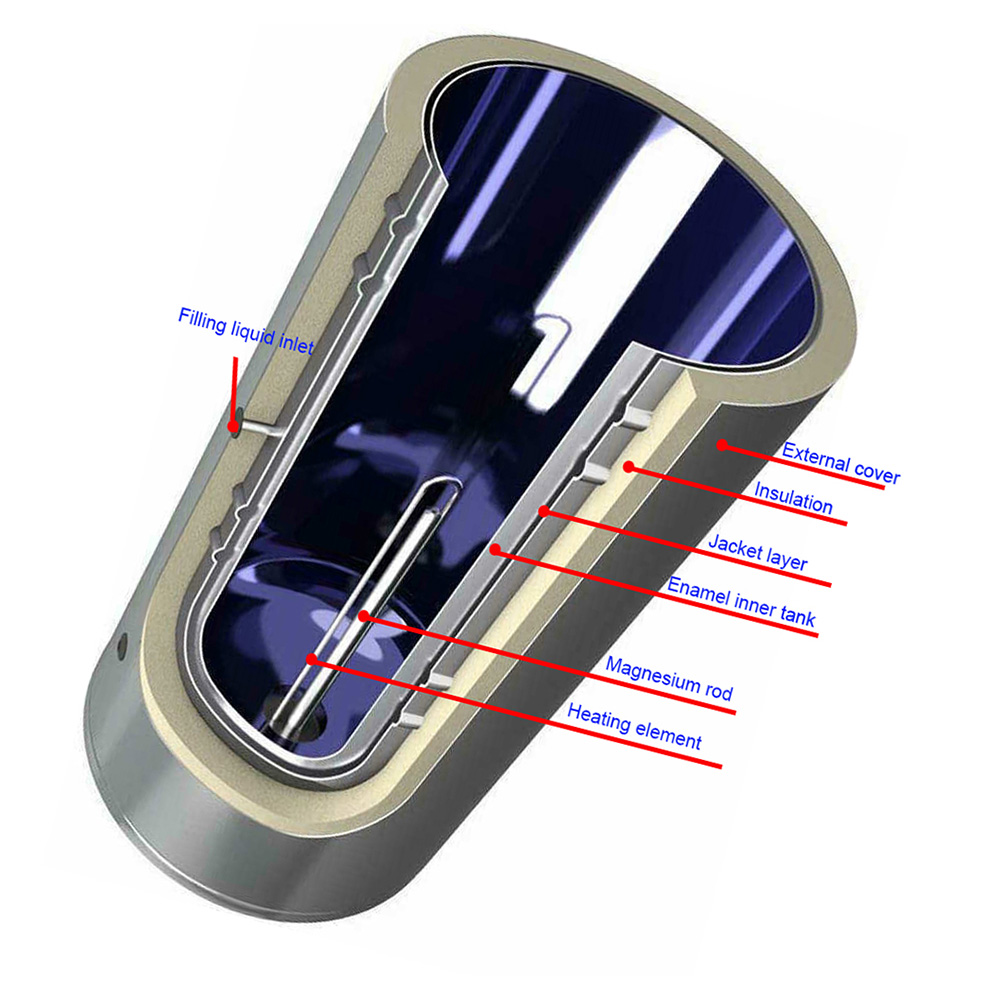

I. Revolutionary Enamel Tank Technology
2. Active Corrosion Defense: Dual-Protection System
3. Advanced Heat Exchange System: Pressurized Dual-Loop Design
4. Laser-Welded Copper Absorber
5. Desert Overheat Protection
6. Smart Control System
Technical Parameters:
200liter Enamel Solar Water Heater.
Collector | BTE2.0-2 | BTE2.5-2 |
Overall area(m2) | 2.0 | 2.5 |
Aperture area | 1.87 | 2.34 |
LxWxH(mm) | 2000x1000x80 | 2000x1250x80 |
Optical performance | 78% | |
Absorber sheet | Al,highly selective coating | |
Frame | Aluminium | |
Enamel Direct Solar Water Heater Tank | |||
Model | BTE-ET-150 | BTE-ET-200 | BTE-ET-300 |
Collector | BTE2.0-2(x1) | BTE2.5-2(x1) | BTE2.0-2(x2) |
Tank(L) | 150 | 200 | 300 |
Dimensions | φ520*1300 | φ580*1310 | φ580*1830 |
Insulation | PU foam 50 mm | ||
Working pressure | 7 bar | ||
Inner tank material | 2.0mm | 2.5mm enamelled | |
Outer tank material | Powder-coated steel | ||
Auxiliary heating | 1.5 KW | 2.0 KW | 2.0 KW |
Corrosion protection | Magnesium anode | ||
Mounting material | 0/25%45°Galvanized sheet | ||
Product Details:

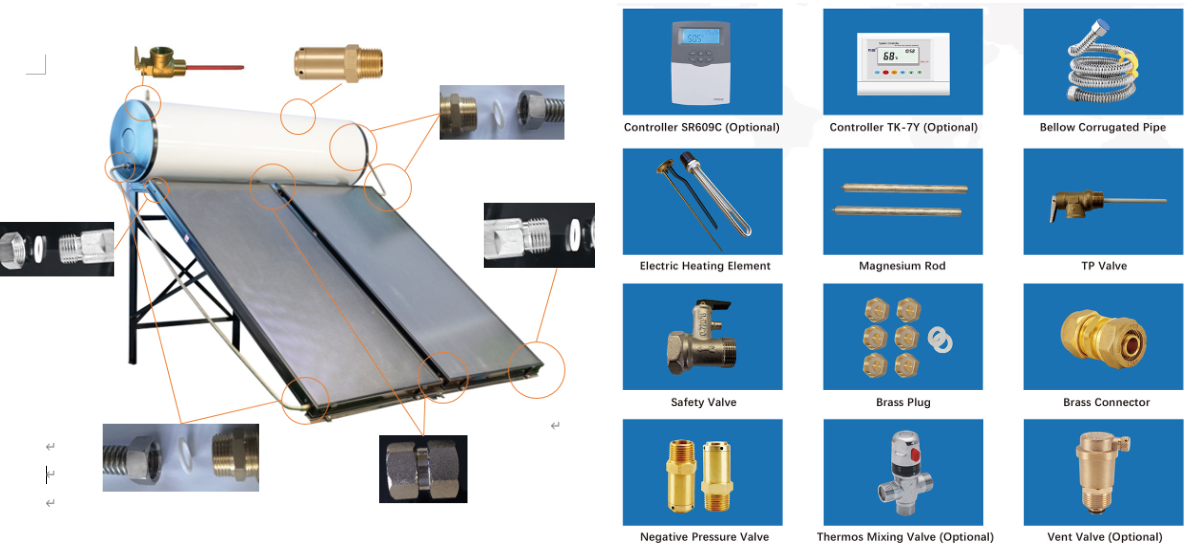

Installation and Accessories:
Provide installation manual and video for this product.

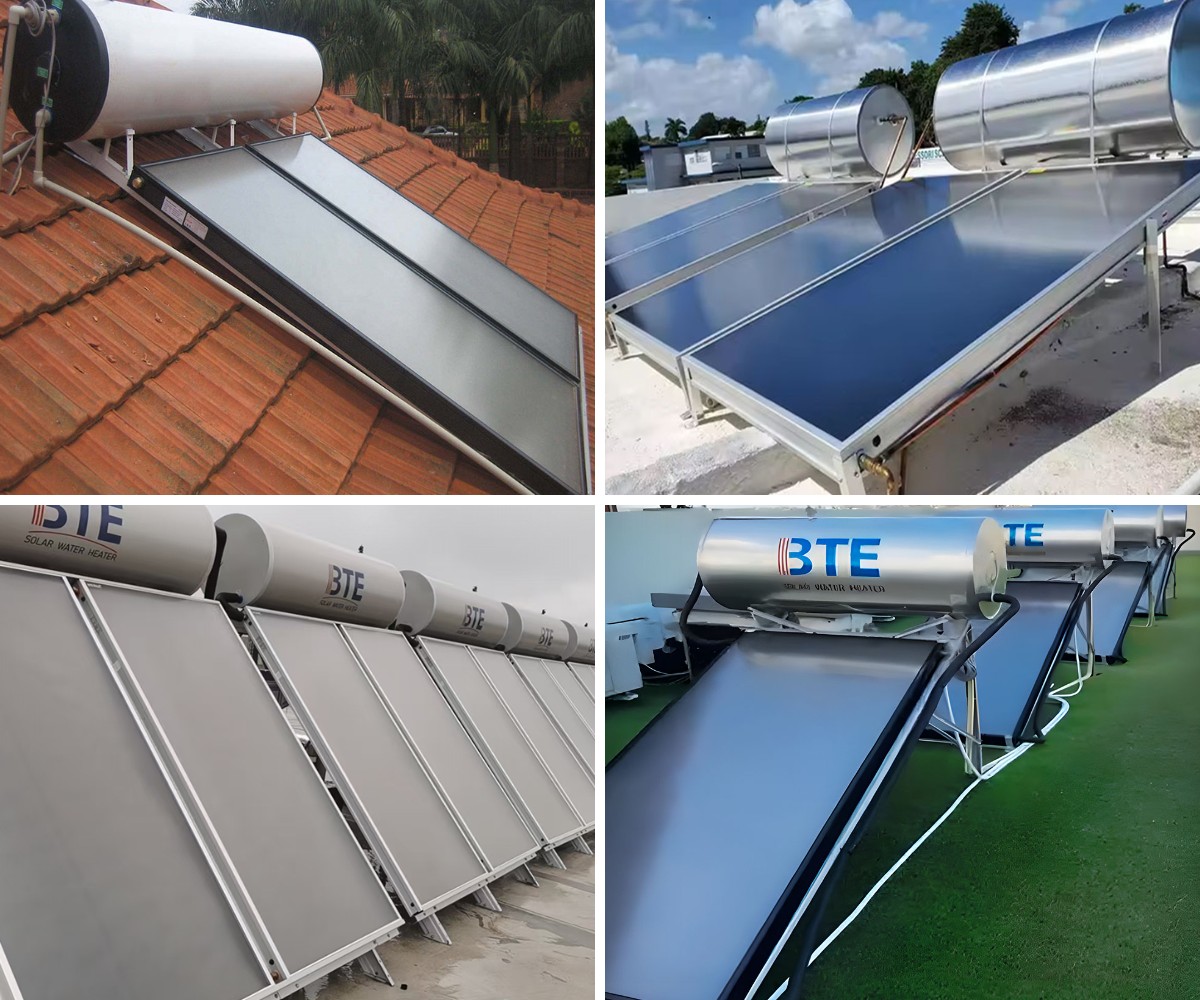

Application Scenarios:
1. Family Homes: Full hot water supply for 3-4 people (showers, kitchen, laundry);
2. Small Hotels: Cost-effective backup for 10+ rooms when combined with existing systems;
3. Off-Grid: Ideal for cabins/farms with solar power systems;
4. Pools: Extend swimming season by pre-heating pool water;
Trust Elements:
EN 12975 | Solar Keymark | ISO 9001 | CE
FAQ：
1. Is your company a trading company or factory?
We have own factory,Welcome to visit our factory.
2. Enamel 200L Solar Water Heater, Roof weight limit?
Full system weighs 98kg (216 lbs) - suitable for most roofs.
3. What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
4. Can you do make with my brand ?
Yes,OEM&ODM order are both welcome and accept.
5. What is your Packing?
LCL order/Sample order in woden case.
Full container order in high quality export carton.
6. What is your FOB Port?
We accept FOB Qingdao , Shanghai ,Tianjin etc.
