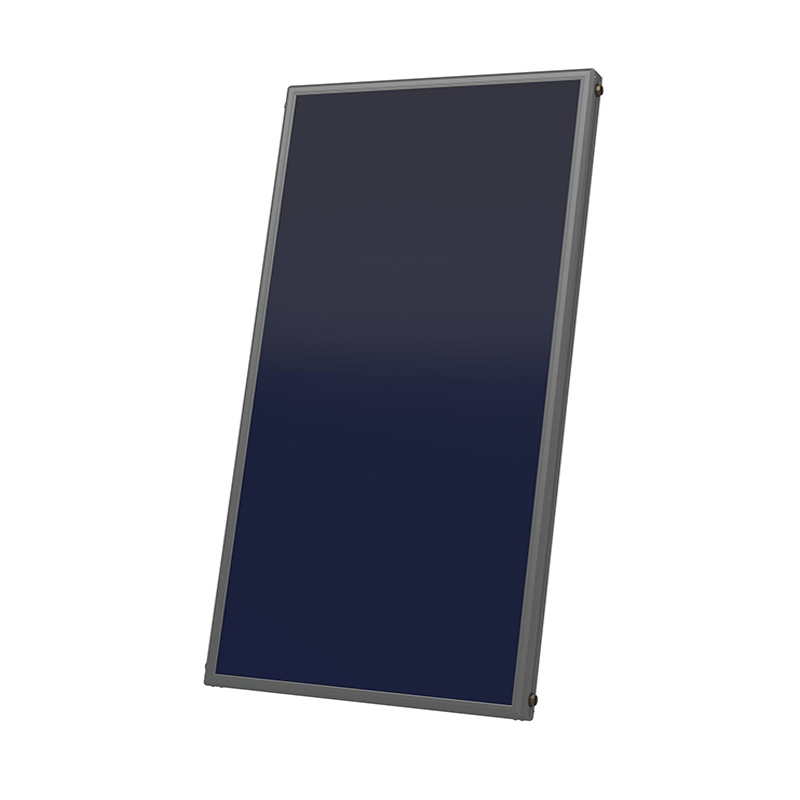

Flat Panel Solar Collector

High-performance Flat Panel Solar Collector

In the global wave of pursuing carbon neutrality and sustainable development, the innovation of solar energy technology plays a crucial role. Among them, the flat panel solar collector, as the core component of the solar thermal utilization system, has long surpassed the traditional simple image of a "black box on the roof". High-performance flat-plate solar collectors, with their outstanding efficiency, excellent reliability and powerful integration capabilities, are becoming indispensable green thermal energy solutions in the fields of industry and commerce, district heating and building integration.

Technical Highlights Summary:

High-performance Flat Plate Collector

·  Blue film: α = 95%, ε = 5%

·  Modular flow channel design

·  PU insulation, high thermal efficiency

·  91% light transmittance glass

·  Ideal for homes, pools, and industry

Technical Parameters:

①Rated Efficiency: Calculated using the collector's instantaneous efficiency equation under 1000W/m² irradiance and a 50°C temperature difference between the collector and ambient air5.
②Rated Power: Derived from the product of rated efficiency, aperture area, and irradiance (1000W/m²) under the same temperature difference condition.

From traditional to high performance: A qualitative leap

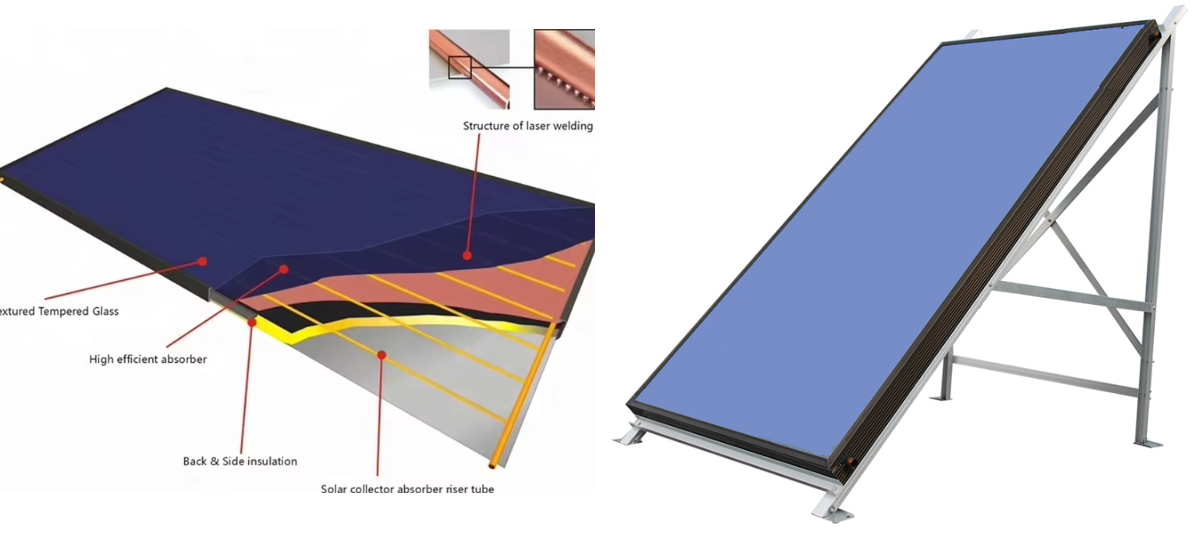

The traditional flat panel solar collector has a simple structure and is mainly composed of an absorbing plate, a transparent cover plate, an insulation layer and a casing. The core issue lies in the significant heat loss, especially when there is a large temperature difference between the ambient temperature and the water temperature, the efficiency will drop significantly.

High-performance flat panel solar collectors have achieved all-round performance improvements through a series of precise innovations in materials science and engineering:

1. Selective absorption coating: This is the "soul" of high-performance collectors. This special coating has an extremely high absorption rate (α > 95%) for short-wave solar radiation, while it has an extremely low emissivity (ε < 5%) for the long-wave infrared radiation it emits itself. This means that it can capture solar energy "only in and never out", and efficiently convert it into thermal energy, while minimizing heat loss caused by re-radiation to the greatest extent.

2. Anti-reflective cover glass: Ordinary glass causes approximately 8% reflection loss to sunlight. High-performance collectors use tempered glass with an anti-reflection film coated on the surface, which can reduce the reflectivity to below 2%. This "invisible" film allows more sunlight to penetrate without hindrance, directly increasing the initial heat gain of the collector.

3. Integral/ultrasonic welded copper tube sheet core: The combination method of the heat-absorbing plate and the flow channel is the key factor affecting the heat transfer efficiency. High-performance models generally adopt integral rolling or advanced ultrasonic welding technology, achieving a perfect combination of the flow channel and the heat-absorbing plate between metals, with extremely low thermal resistance, ensuring that heat can be rapidly and losslessly transferred to the heat-conducting medium inside the tube.

4. Inert gas filling and high-quality insulation: To reduce convective and conductive heat loss inside the collector, high-performance products will fill the cavity between the cover plate and the heat-absorbing plate with inert gases such as argon. Meanwhile, the insulation layers on the back and sides are made of high-performance rock wool or polyurethane foam, with their thickness and density carefully designed to ensure that heat can be "locked" inside the collector even in cold environments.

Why is high performance so crucial? Analysis of Core Advantages

These technological upgrades not only bring about an increase in paper efficiency figures, but also offer significant advantages in practical applications:

Higher operating temperature and year-round efficiency: High-performance collectors can produce hot water or heat transfer media at temperatures ranging from 70 ° C to 100 ° C or even higher while maintaining high efficiency. This enables them to meet the demands of fields with strict temperature requirements such as industrial process heating and district heating, breaking the limitation that solar energy can only provide low-temperature hot water.

Outstanding durability and low maintenance costs: The all-metal material, tempered glass casing and robust structural design enable it to withstand harsh environments such as hail, strong winds, humidity and corrosion, with a service life of over 25 years. Its sealing structure avoids problems such as tube explosion, scaling and aging of sealing rings that may occur in vacuum tube collectors, and requires almost no maintenance.

Perfect integration with buildings: The simple and sturdy planar structure of flat-plate collectors enables them to be seamlessly integrated into the exterior walls or roofs of buildings as part of the building components, achieving "building-integrated photovoltaic and solar thermal integration". This is not only aesthetically pleasing but also saves additional installation space and structural costs.

Higher cost performance and return on investment: Although the initial investment of a single high-performance collector may be higher than that of ordinary products, its higher energy output, longer service life and lower maintenance cost can bring a better return on investment throughout its entire life cycle. For large-scale projects, this means shorter cost recovery cycles and more stable long-term energy returns.

Application scenarios: From household hot water to industrial giants

The application scope of high-performance flat panel solar collectors is extremely wide:

Central hot water systems for large-scale commercial and public facilities such as hotels, hospitals, schools, and swimming pools require a continuous, large volume, and stable temperature supply of hot water. High-performance flat panel solar collectors are the ideal choice for them.

District heating: In northern Europe, northern China and other places, large-scale solar district heating stations have become a reality. Tens of thousands of square meters of high-performance flat-plate collector arrays store heat in underground reservoirs during the non-heating season and provide clean heating for the entire community in winter.

Industrial process heating: Numerous industrial processes such as food processing, textile printing and dyeing, chemical engineering, and electroplating require a large amount of medium and low-temperature heat energy. Replacing or assisting traditional gas and coal-fired boilers with solar energy can significantly reduce the carbon emissions and energy costs of enterprises.

Agricultural drying and refrigeration: Providing heat sources for drying agricultural products or driving absorption chillers to supply air conditioning for buildings has expanded the seasonal application of solar energy.

Future Outlook

With the continuous advancement of materials science and manufacturing processes, high-performance flat-plate collectors in the future will develop towards higher efficiency, lower cost and greater intelligence. For instance, coupling with heat pump systems, using nano-fluids as heat transfer fluids, and integrating Internet of Things (iot) technology to achieve remote monitoring and intelligent regulation, etc., will all further enhance the system value and market competitiveness.

High-performance flat panel solar collectors are no longer simple water heaters; they represent a mature, reliable and efficient energy conversion technology. It serves as a solid bridge connecting the abundant solar energy with the diverse thermal energy demands of humanity, and is a hardcore technology driving deep decarbonization in the industrial, commercial and construction sectors. In the context of the energy transition era, choosing high-performance flat-plate solar collectors is not only about selecting an energy-saving device, but also about choosing a future-oriented and sustainable energy solution.
