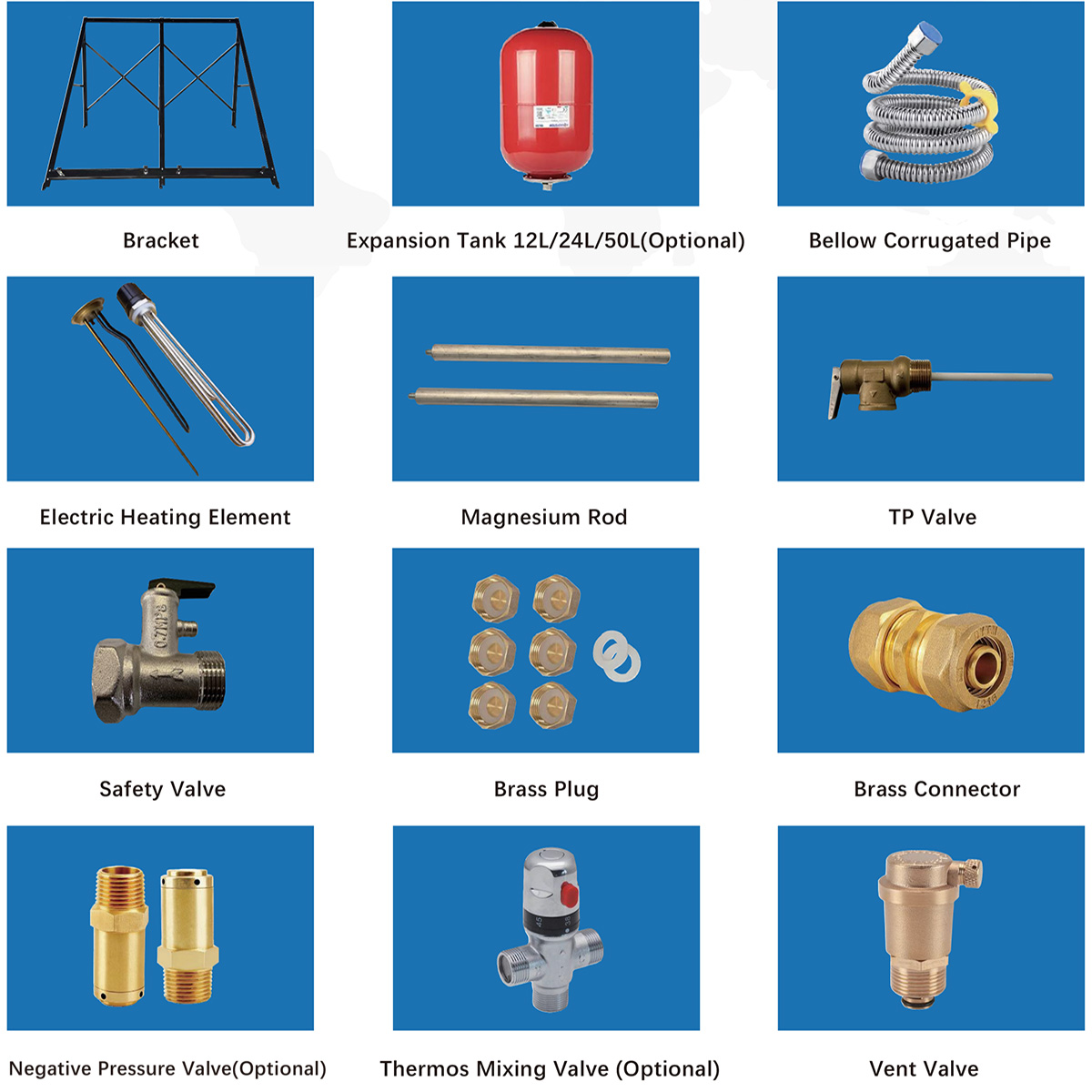

Solar Geyser Split System
Product features:
1. Anti-Freeze Protection – The controller prevents freezing with automatic temperature regulation for reliable operation.
2. High-Efficiency Coils (Optional) – Boost heat transfer speed and system performance with upgraded coils.
3. Quick Delivery & Safe Use – Fast shipping and rigorously tested for secure, worry-free application.
Product Introduction:
Combined with solarheation system,heatpump,electricaI heater and other heating source, and use the sun to heat your water to save your energy costs.
Optional coils to fast the efficiency of heat transferring and optional water connections according to customers requests.
High dencity poyurethanefoam reduces heatloss and energycosts for maximum efficiency.
Model | BTE-2.0 |
LxW xH(mm) | 2000x1000x80 |
Overall area(m2) | 2 |
Aperture area(m2) | 1.87 |
Rated working pressure (MPa) | 0.6 |
Interface size | G3/4 |
Number of connections | 4 |
Frame color | Black/Oxidized white |
Maxmum working temperature | 100°C |
Peak efficiency | 0.78 |
Rated efficiency | 0.53 |
Stainless Steel Water Tank:
Model | 300 | 500 | 800 | 1000 |
collector | BTE-2.0(×3) | BTE-2.0(×4) | BTE-2.0(×8) | BTE-2.0(×10) |
Length (mm) | 1740 | 1845 | 1720/1820 | 2000/2100 |
Inner Diameter (mm) | Φ480 | Φ580 | Φ800 | Φ800 |
Outer Diameter (mm) | Φ580 | Φ700 | Φ900/1000 | Φ900/1000 |
Insulation | PU foam 50mm | PU foam 60mm | PU foam 50/100mm | PU foam 50/100mm |
Inner tank material | SUS304 /SUS316 L | |||
Outer tank material | Colour-coated sheet | |||
Working pressure | 7 bar | |||
Electric heat element | 220V 1500W~3000W / 110V 1500W | |||
Coil pipe material | Optional（copper/sus304/sus316） | |||
Coil size | Φ12*1.0mm | |||
Exchange heat coil | None/Bottom coil/Upper coil and Bottom coil | |||
Expension tank | 12L | 24L | 50L | 50L |
Workstation:
Input | Pump | Rated power | Controller | Dimension | |
SR21H | AC220V/110V，50Hz | Grundfos 15-65 130 | 60-100W | SR258 | 45x30x16cm |
TSCEN-6 | AC220V/110V，50Hz | Wilo ST20/11 | 165w | FTC-6 | 27×46×16cm |
Honors and Qualifications:
The product has passed testing and met the requirements of European standards, thus obtaining CE and Solar keymark certificates.
