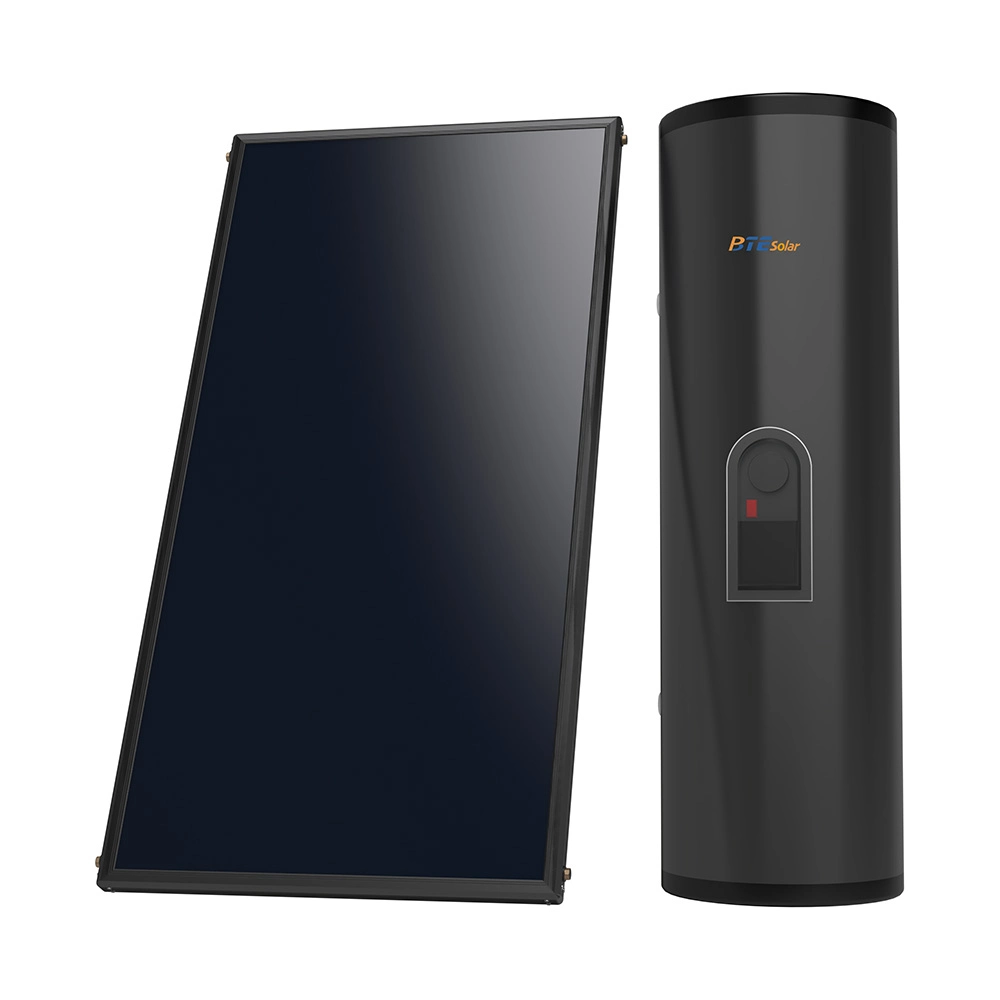

Flat Panel Split Solar Water Heater
1. Dual-Coil Heat Exchanger – Faster heating & improved efficiency (primary coil for solar, backup coil for electric/gas).
2. High-Efficiency Solar Collector – Advanced absorber technology maximizes sunlight conversion.

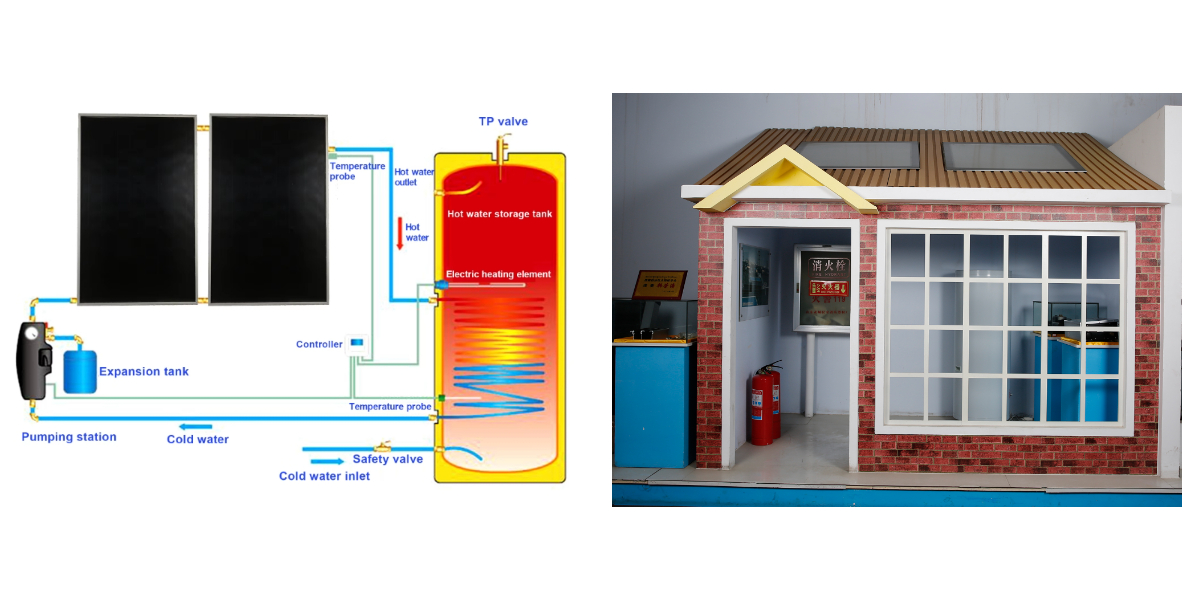

3. Split Design Flexibility – Solar panels can be installed on rooftops while the tank stays indoors (reduces heat loss).
4. Stainless Steel Tank – Anti-corrosion, durable, and long-lasting performance.
5. Smart Energy Savings – Solar-powered operation cuts energy costs by up to 70%.
6. All-Weather Reliability – Works with electric/gas backup for cloudy days or high demand.
7. Low Maintenance – Fewer moving parts, corrosion-resistant materials.
Product Overview:
This newly designed high performance advanced split solar water heater is equipped with high performance solar collectors and double coil stainless steel water tank to ensure excellent heat transfer performance and energy saving effect. Ideal for residential and commercial use, the system 24-hour continuous hot water supply while reducing reliance on electricity or gas.
In a significant stride towards revolutionizing the renewable energy landscape, BTE Solar, a renowned name in the solar thermal technology domain, has recently unveiled its latest flat panel split solar water heater, setting new benchmarks in efficiency and durability.
Flat panel split solar water heater is set to redefine how households and commercial entities approach solar hot water supply, offering a sustainable and cost-effective alternative to traditional solar hot water heating systems.
Product Parameters:
Aperture area | 1.87 |
L x W x H(mm) | 2000x1000x80 |
Rated working pressure(MPa) | 0.6 |
Optical performance | 78% |
Absorber sheet | Al,highly selective coating |
Frame | Aluminium |
Stainless Steel Water Tank:
Model | 300 | 500 | 800 | 1000 |
Collector | BTE2.0(x3) | BTE2.0(x4) | BTE2.0(x8) | BTE2.0(x10) |
Length(mm) | 1740 | 1845 | 1720/1820 | 2000/2100 |
Inner Diameter (mm) | φ480 | φ580 | φ800 | φ800 |
Outer Diameter(mm) | φ580 | φ700 | φ900/1000 | φ900/1000 |
Insulation | PU foam 60 mm | PU foam 60 mm | PU foam 50/100 mm | PU foam 50/100 mm |
Inner tank material | SUS 304/SUS 316L | SUS 304/SUS 316L | SUS 304/SUS 316L | SUS 304/SUS 316L |
Outer tank materia | Colour-coatedsheet | Colour-coatedsheet | Colour-coatedsheet | Colour-coatedsheet |
Working pressure | 7 bar | 7 bar | 7 bar | 7 bar |
Electric heat element | 220V 1500W~3000W /110V 1500W | |||
Coil pipe material | Optional(copper/sus304/sus316) | |||
Coil size | φ12*1.0mm | |||
Exchange heat coil | None/Bottom coil/Upper coil and Bottom coil | |||
Expension tank | 12L | 24L | 50 | 50L |

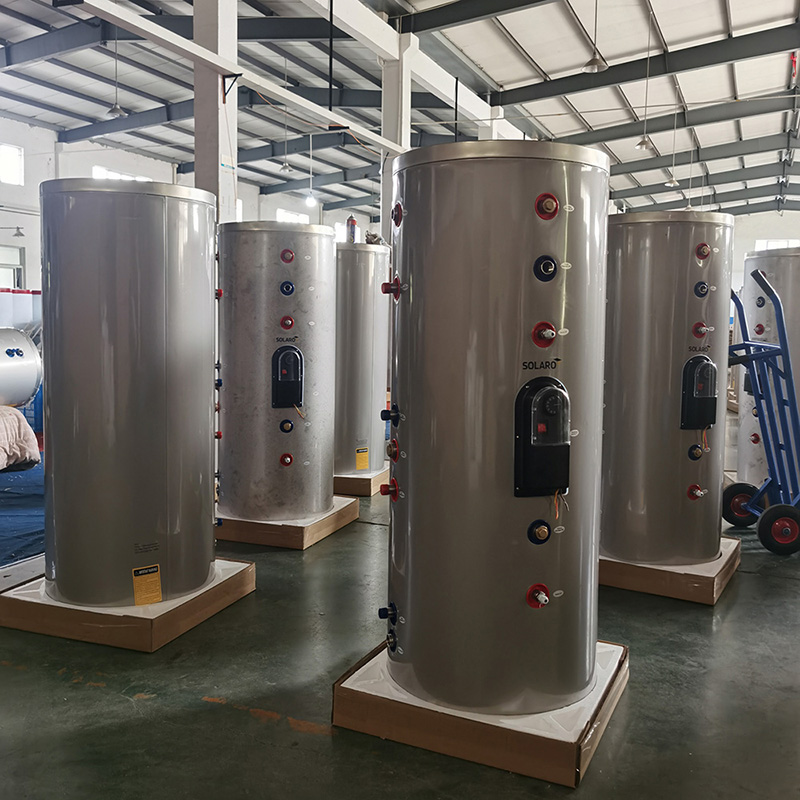

Product production line:
Unrivaled Efficiency:
1. At the heart of BTE Solar's new offering lies a high-performance absorption mechanism. The solar flat plate collectors are equipped with advanced selective blue/black solar coatings that can absorb over 95% of solar radiation, even in low - light conditions. Flat plate split solar water heater can rapidly hot heating water, ensuring a consistent supply of hot water throughout the day. Whether it's a sunny day or a relatively cloudy one, users can rely on the flat panel split solar water heater systems to meet their hot water demands.
2. Solar flat plate collector is new design also features highly conductive copper or aluminum solar absorber plates. These solar absorber plates quickly transfer the absorbed solar heat to the water or antifreeze fluid within the system. As a result, the heat transfer process is highly efficient, reducing the time it takes to heat water compared to conventional solar water heaters.
Exceptional Durability:
1. Built to withstand the harshest environmental conditions, the new BTE flat plate Split Solar water heater system is a paragon of durability. The flat plate solar thermal panels are encased in a weather resistant aluminum frame. It is not only provides structural stability but also protects the internal components from the damaging effects of rain, snow, and strong winds. The tempered glass cover further enhances the durability of the collectors. It can resist impacts from hail and other debris, ensuring that the flat plate Split Solar water heater system remains operational even during extreme weather events.
2. The storage tank of the water heater is made from high grade stainless steel SUS304/316 or enamel line materials. These materials are corrosion - resistant, preventing the formation of rust over time. Additionally, the tank is equipped with a magnesium anode for added corrosion protection. This ensures that the tank has a long lifespan, the service life can reach more than 15 years. providing users with reliable hot water supply for years to come.

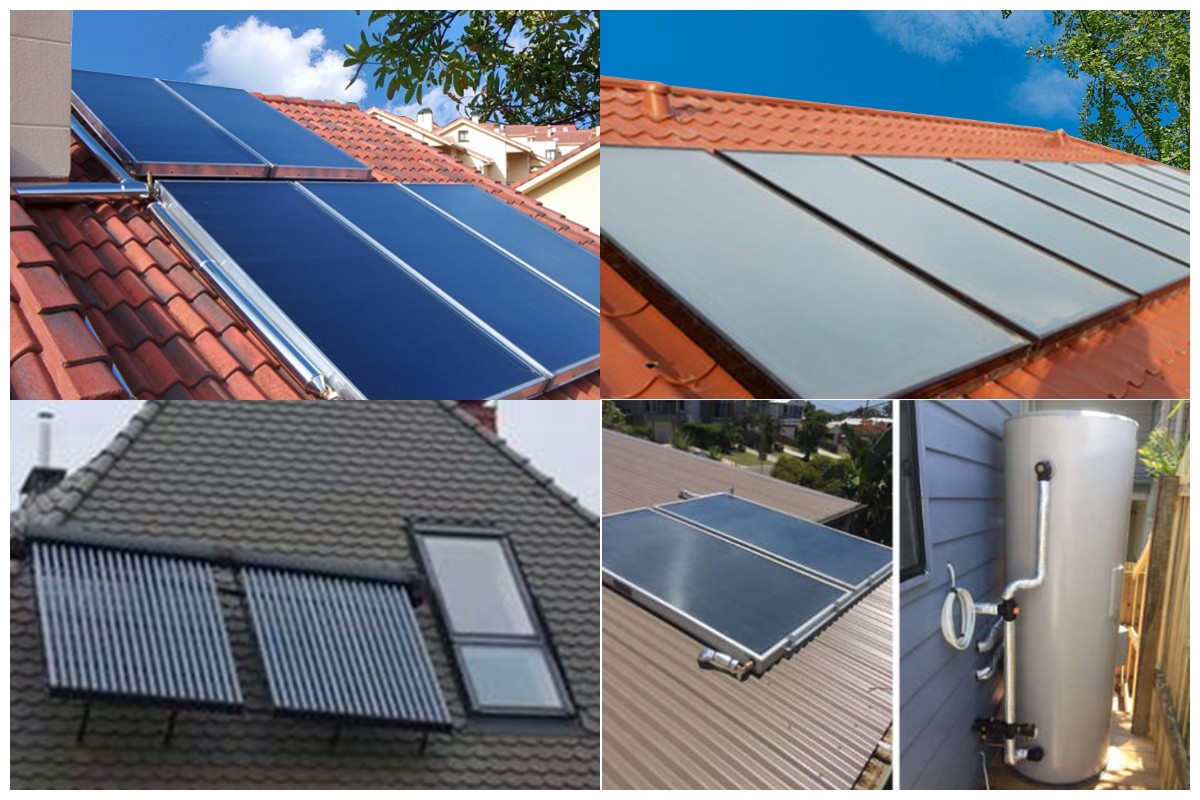

Application Scenario&Project Cases:
Flat Panel Split Solar Water Heater system is designed to meet the diverse needs of its customers. With solar tank capacities ranging from 100L to 1000L, The system can be tailored to suit the requirements of small households to larger commercial establishments.
We can provide customized services, a 150L solar water boiler is ideal for a family of 3 to 4 peoples, while a 300L solar water tank can comfortably serve a medium - sized hotel or a larger residential building.
The modular design of the flat plate sun collectors allows for easy installation and expansion. Whether it's a rooftop installation in an urban apartment or a ground - mounted setup in a rural villa, The water tank can be installed flexibly, in a storage room or balcony, etc. the system can be configured to fit the available space.
In addition,, the solar thermal panels can be adjusted to optimize sunlight exposure, making it suitable for different geographical locations.
Honors and Qualifications:
Flat Plate Split Solar Water Heating System is very high performance, with its combination of high efficiency and durability, is a game - changer in the solar energy market. As the world continues to shift towards renewable energy sources, Flat Plate Split Solar Water Heating System like this are not only a smart choice for consumers but also a crucial component in the global fight against climate change.
BTE Solar has obtained international certifications such as CE, Solar KeyMark and ISO 9001 to meet the certification requirements of different countries., BTE Solar has proven its commitment to quality and international standards, making this new water heater a reliable and trustworthy investment.
