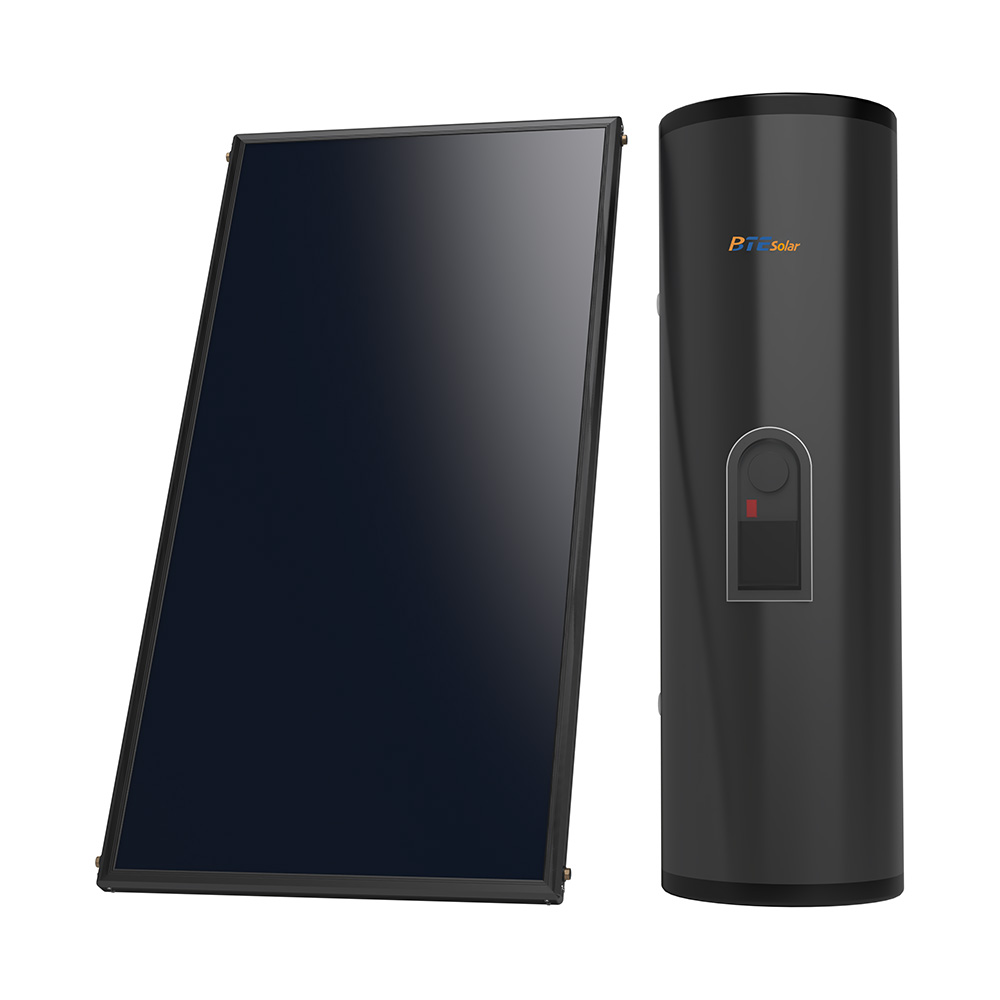

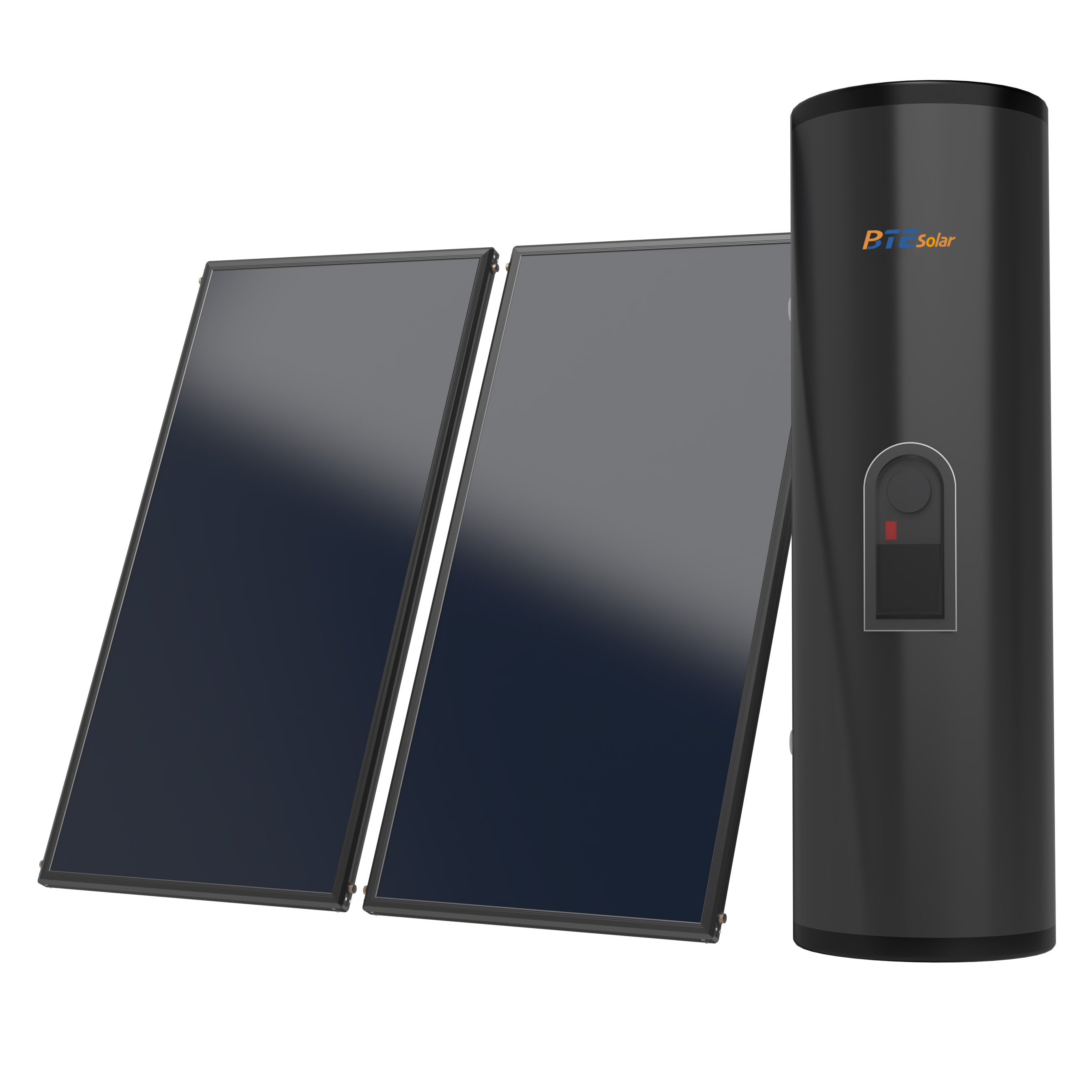

Flat Plate Split Solar Water Heater
Product Advantages:
1. Higher Efficiency: Collectors work well in diffuse light; indoor tank minimizes heat loss.
2. Freeze & Overheat Protection: Glycol loop prevents freezing; heat exchanger avoids tank overheating.
3. Pressurized Hot Water: Integrates with household plumbing for strong tap flow.
4. Flexible Installation: Collectors on roof/tank indoors (space-saving, protected).
5. Easy Maintenance: Key components (pump, tank) accessible indoors.
6. Reliability & Durability: Robust design; indoor tank extends lifespan.
7. Significant Energy Savings: Cuts 50–80% of conventional water heating costs.
Product Introduction:
Flat Plate Split Solar Water Heater uses roof-mounted flat plate collectors to absorb solar energy and an indoor storage tank to hold heated water. The two components are connected via pipes circulating a heat transfer fluid (glycol-water mix). Ideal for residential/commercial use, Flat Plate Split Solar Water Heater delivers pressurized hot water while maximizing efficiency and durability.
Technical Parameters:
Flat-plate split solar water heaters can be designed according to customer requirements, with a water tank capacity of 100L-2000L.
Model | BTE-2.0 |
LxW xH(mm) | 2000x1000x80 |
Overall area(m2) | 2 |
Aperture area(m2) | 1.87 |
Rated working pressure (MPa) | 0.6 |
Interface size | G3/4 |
Number of connections | 4 |
Frame color | Black/Oxidized white |
Maxmum working temperature | 100°C |
Peak efficiency | 0.78 |
Rated efficiency | 0.53 |
Stainless Steel Water Tank
Model | 300 | 500 | 800 | 1000 |
Collector | BTE2.0(x3) | BTE2.0(x4) | BTE2.0(x8) | BTE2.0(x10) |
Length(mm) | 1740 | 1845 | 1720/1820 | 2000/2100 |
Inner Diameter (mm) | φ480 | φ580 | φ800 | φ800 |
Outer Diameter(mm) | φ580 | φ700 | φ900/1000 | φ900/1000 |
Insulation | PU foam 60 mm | PU foam 60 mm | PU foam 50/100 mm | PU foam 50/100 mm |
Inner tank material | SUS 304/SUS 316L | SUS 304/SUS 316L | SUS 304/SUS 316L | SUS 304/SUS 316L |
Outer tank materia | Colour-coatedsheet | Colour-coatedsheet | Colour-coatedsheet | Colour-coatedsheet |
Working pressure | 7 bar | 7 bar | 7 bar | 7 bar |
Electric heat element | 220V 1500W~3000W /110V 1500W | |||
Coil pipe material | Optional(copper/sus304/sus316) | |||
Coil size | φ12*1.0mm | |||
Exchange heat coil | None/Bottom coil/Upper coil and Bottom coil | |||
Expension tank | 12L | 24L | 50L | 50L |
Workstation:
Input | Pump | Rated Power | Controller | Dimension | |
SR21H | AC220V/110V，50Hz | Grundfos 15-65 130 | 60-100W | SR258 | 45x30x16cm |
TSCEN-6 | AC220V/110V，50Hz | Wilo ST20/11 | 165w | FTC-6 | 27×46×16cm |

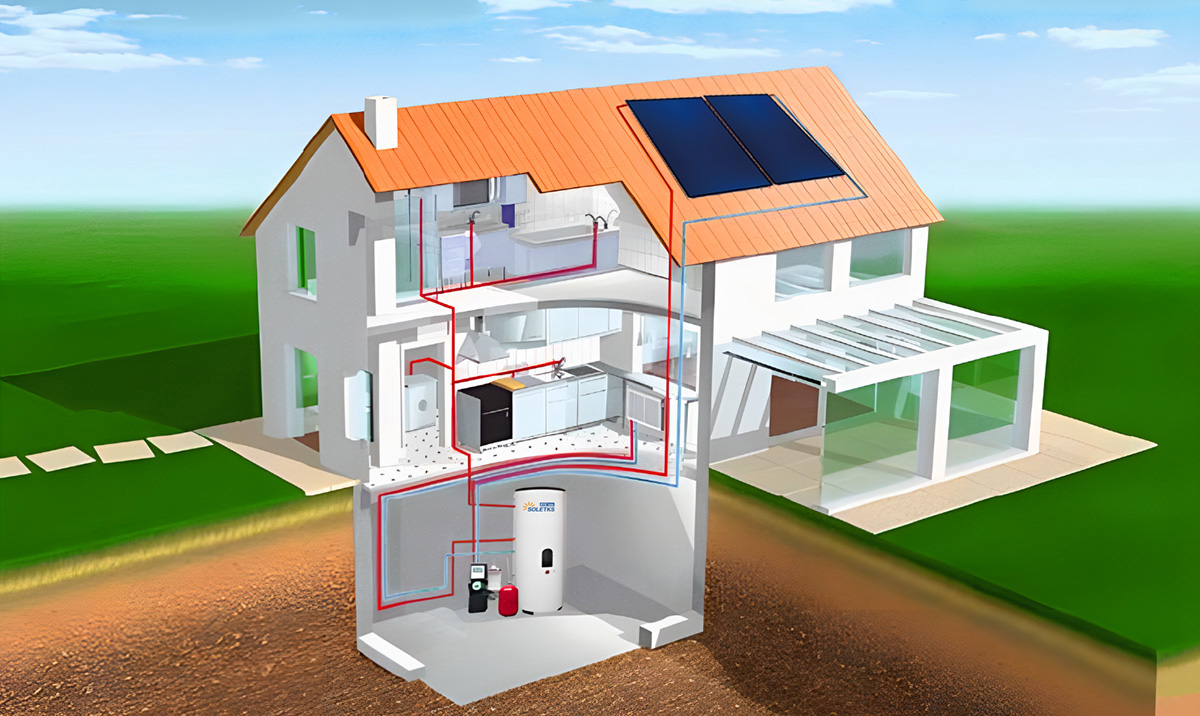

Schematic Diagram:
Production Details:
100% Factory; Leading R&D; 15+ years thermal industry experience; the only company in China which can produce both blue coating and black coating
Accessories:
Key Technical Features:
1. Split Design: Collectors on roof (sun exposure); Tank indoors (reduces heat loss, protects from weather).
2. Closed-Loop Glycol System: Freeze protection (operates below 0°C); Prevents scaling/corrosion in pipes.
3. Pressurized Storage Tank: Direct integration with household plumbing → strong water pressure.
4. High-Efficiency Flat Plate Collectors: Absorb direct/diffuse sunlight; Copper absorber plates + tempered glass cover.
5. Intelligent Control System: Automated pump operation based on temperature differential.
6. Overheat Protection: Heat dissipation via heat exchanger.
Application examples:
1. Residential: Single-family homes (tank in basement/utility room); Apartment buildings (centralized system with large tank).
2. Commercial: Hotels (laundry, showers); Gyms/swimming pools (shower heating); Restaurants (kitchen pre-heat).
3. Households with High Hot Water Demand: Scalable tank size (300L+).
4. Roof Space/Weight Constraints: Lightweight collectors; heavy tank installed indoors.
5. Aesthetic Requirements: Minimal rooftop footprint (only collectors visible).
