Heat Pipe Collector

Heat Pipe Solar Collector: The Ultimate Efficient And Reliable All Weather Solar Solution

In the field of solar thermal utilization, heat pipe solar collectors, with their outstanding performance and extraordinary reliability, are hailed as the core components of high-end solar hot water systems. It perfectly integrates vacuum heat collection technology with aerospace-grade heat pipe heat transfer technology. Even under the most demanding environmental conditions, it can provide you with stable and efficient thermal energy output. It is an ideal choice for home and commercial projects that pursue ultimate performance and long-term investment.

Product Introduction: Revolutionary core technology for efficient heat collection

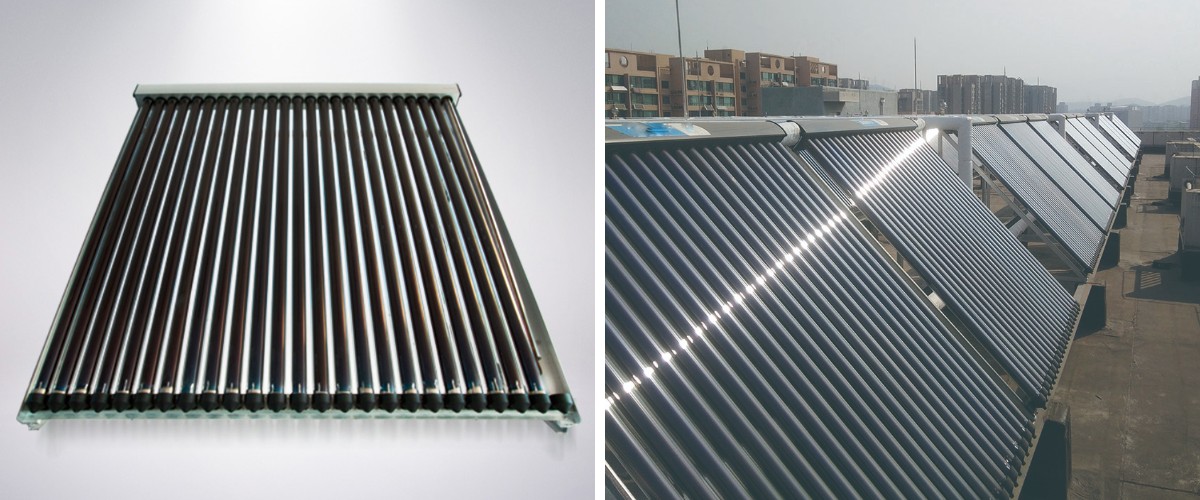

The heat pipe solar collector is an advanced device that combines vacuum tubes and independent heat pipes for heat collection and transfer. Its core design ingeniously separates the "heat collection" and "heat transfer" processes, achieving outstanding performance that is highly efficient, safe and anti-freezing.

Core components and working principles of the system

1. High-efficiency all-glass vacuum tube: Made of high borosilicate 3.3 glass, the interior is coated with an absorption layer by magnetron sputtering process, forming a selective absorption film with high absorption and low emission. The vacuum interlayer creates an almost perfect insulation environment, effectively suppressing heat loss caused by convection and conduction, ensuring that the collector maintains an extremely high heat collection efficiency even in cold and windy conditions.

2. Core technology - Superconducting heat pipe: This is the "soul" of the collector. A heat pipe is a sealed metal tube (usually a copper tube) filled with a small amount of special working medium inside. Its working principle is:

3. The heat-absorbing end (evaporation section): Located inside the vacuum tube, after absorbing solar energy, the working medium inside instantly vaporizes and evaporates.

Heat transfer: Steam rapidly rises to the top condensation end under a slight pressure difference.

4. Heat release end (condensation section): Inserted into the system's header or heat exchanger, steam condenses upon cooling here, releasing a huge latent heat of vaporization, thereby heating the water or heat exchange medium in the header.

Reflux: The liquefied working medium flows back to the evaporation section by gravity, and this cycle repeats itself.

5. Header and insulated water tank: The header is the component that collects all the heat from the heat pipes. The internal flow channels have been optimized to ensure that the heat is transferred quickly and evenly. The system is used in conjunction with a pressure-bearing insulated water tank to form a split-type solar hot water system, achieving the same water pressure as the building for the water outlet experience.

Our heat pipe collector modules support flexible configuration and can be widely applied in residential homes, hotels, swimming pool heating, industrial preheating and other fields. The system capacity can be easily expanded from 150L to several thousand liters, meeting various large-scale hot water and heating demands.

Product Advantage: Why is heat pipe Technology the top choice?

Super strong frost resistance, no worries in severe cold: This is the most significant advantage of heat pipe technology. The water or medium inside the collector does not flow directly in the vacuum tubes but is "dry connected" through the heat pipes. Even when the outside temperature drops to minus 50 degrees Celsius, the heat pipes inside the vacuum tube will not crack due to freezing, completely eliminating the risk of freezing pipes in traditional solar water heaters in winter. It is particularly suitable for use throughout the year in high-cold regions.

1. High-efficiency heat collection and quick start-up: The boiling point of the working medium inside the heat pipe is extremely low. Only weak sunlight exposure is needed to initiate the vaporization heat transfer process. The start-up temperature is low and the thermal response speed is fast. Its highly efficient phase change heat transfer efficiency is much higher than the sensible heat transfer of ordinary water, and it can transfer heat to the water tank instantly with minimal loss.

2. Safe and stable, pressure-bearing operation: The system is matched with a pressure-bearing water tank, providing strong water outlet pressure and offering a comfortable bathing experience. Meanwhile, the modular design of "heat pipe - header" means that the damage of a single vacuum tube will not affect the normal operation of the entire system. During maintenance, only a single vacuum tube needs to be replaced, which is simple and convenient, and the system reliability is extremely high.

3. Durable and anti-scaling design: Heat is transferred through heat pipes, and the water in the header and pipes is in a relatively closed circulation, making it less likely for new scale to form. Meanwhile, the separation design of the vacuum tube from the system waterway avoids the risk of system leakage caused by the rupture of the vacuum tube, significantly extending the service life of the entire system.

4. Flexible installation and strong adaptability: The installation Angle requirement for heat pipe collectors is relatively loose. As it relies on gravity reflux, only a certain inclination Angle needs to be ensured. It can be flexibly installed on pitched roofs, flat roofs and even building facades, easily achieving building integration and adapting to various complex installation environments.

Factory advantages: Professional manufacturing, creating outstanding quality

As a leading solar collector manufacturing factory, we focus on the research and development and production of heat pipe technology, providing reliable products for customers worldwide.

1. Core technology autonomy: We have our own heat pipe production line and vacuum tube production line. The control over core technologies ensures full-process quality control from the source to the finished product. Our heat pipes undergo strict filling volume control, exhaust process and performance testing to ensure that each one has outstanding heat transfer performance and an extremely long service life.

2. Fully automated production and quality control: The factory has introduced fully automated welding, assembly and inspection equipment. Each batch of products needs to pass a series of strict quality inspection procedures such as withstand voltage test, dry burning test, cold and heat shock test, etc., to ensure that the products meet international standards, such as Solar Keymark, CE, SRCC, etc.

3. Strong R&D and customization capabilities: Our R&D team continuously optimizes the absorption coating formula and the proportion of heat pipe working medium. We offer professional OEM/ODM services. According to the specific project requirements of our customers, we can customize vacuum tubes and heat pipes of different lengths and specifications, as well as headers of different sizes, providing comprehensive technical solutions.

4. Global project experience: Our products have been successfully applied in many countries and regions around the world, from the frigid regions of Northern Europe to the scorching deserts of the Middle East. We have accumulated rich experience in cross-border exports and large-scale engineering projects, and are capable of providing strong technical and supply chain support for distributors and engineering contractors.

Success story: Globally verified outstanding performance

Our heat pipe solar collectors have proven their value in diverse climates and application scenarios around the world.

1. Case One: Winter Villa Heating Project: In Heilongjiang Province, where winter temperatures can drop to minus 30 degrees Celsius, we installed an integrated system combining heat pipe collectors and low-temperature air source heat pumps for a villa. The heat pipe collector is responsible for providing the basic heat source on fine days, greatly alleviating the working pressure of the heat pump in extremely low temperatures. Throughout the winter, it has saved the owner over 40% of heating costs. The system operates stably without any freezing damage issues.

2. Case Two: Year-round Hot Water Supply for Hotels: We provided a large-scale centralized heating system for a mountain hotel in Norway, featuring hundreds of heat pipe collectors. Even during the long polar night season, this system can capture the faint sunlight during the day and efficiently prepare hot water. Its outstanding anti-freezing performance and all-weather reliability have been highly recognized by the hotel management.

3. Case Three: Industrial Preheating Project: We provided a solar preheating system for the process water of a factory in Saudi Arabia. Despite the sandy and dusty local environment and large temperature differences, our heat pipe collectors have demonstrated extremely strong environmental adaptability. Their highly efficient heat collection capacity has significantly reduced the steam consumption of the factory, and the investment cost has been recovered in a short period of time.

Act now and choose a professional and reliable green energy solution!

If you are looking for a solar heat collection product that can handle complex climates, pursue ultimate performance and long-term stability, the heat pipe solar collector is undoubtedly your ultimate choice. Please contact us immediately to obtain free professional technical consultation and solution design. Our expert team will tailor the most economical and reliable solar thermal utilization system for you based on your specific geographical location, climatic conditions and water usage needs, helping you achieve the greatest energy-saving benefits.
