Porcelain-Enameled Flat-Panel Solar Water Heaters: The Green Energy Hub for Modern Homes, A Smart Investment

With the global advocacy for sustainable development and energy conservation and emission reduction, utilizing clean energy to reduce living costs and improve quality of life has become a core issue for modern families. Among the many green solutions, solar water heaters are undoubtedly the most technologically mature and widely used option. Enameled flat-plate solar water heaters, with their superior overall performance, have distinguished themselves from traditional options, becoming a new favorite in the high-end market and a standard feature in smart homes. This article will provide a comprehensive and in-depth analysis of this product to help you gain a deeper understanding of its value.

I. Conceptual Analysis: What is an Enameled Flat-Panel Solar Water Heater?

An enameled flat-plate solar water heater is an integrated system, and its name accurately defines its two core components:

Enameled Inner Tank: This is the system's "heat storage heart." It utilizes thick steel plate as its base, with a layer of special non-metallic, inorganic enamel sintered on its inner and outer surfaces at temperatures exceeding 850°C. This enamel fuses with the steel to form a hard, smooth, and dense protective layer.

Flat Panel Collector: This is the system's "heat absorption engine." It consists of a large, dark-colored heat-absorbing panel core (typically constructed with copper tubes and aluminum fins, or all-copper), high-strength, transparent glass, insulation, and a metal frame. Its modern, minimalist appearance resembles a single dark glass panel.

The combination of these two creates a high-performance water heater that withstands pressure, is durable, and efficiently collects heat.

II. Core Working Principle: Nature's Energy Transporter

Its operation is an ingenious process of energy conversion and transfer, primarily categorized into two circulation modes:

Natural Circulation (Thermosiphon Effect): Commonly found in compact systems. The collector is located below the water tank. Sunlight heats the medium within the collector, causing it to become lighter and naturally rise to the heat exchanger within the water tank. The cooler medium within the water tank becomes heavier and naturally sinks to the collector. This cycle repeats, automatically circulating the heat without external forces.

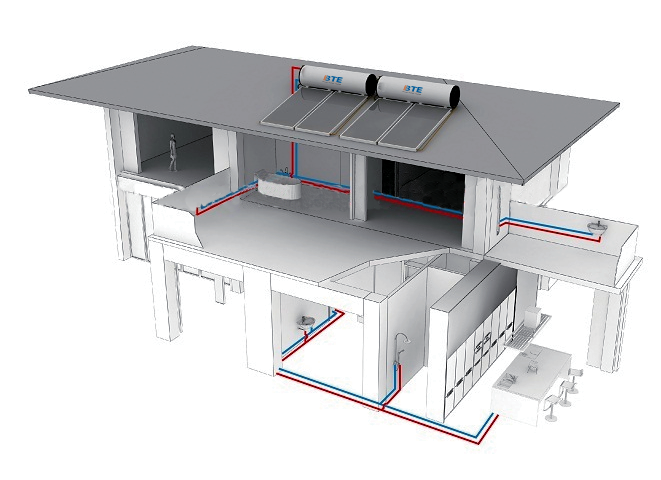

Forced Circulation (Split): This is the current mainstream solution for high-rise residential buildings. The collector is mounted on the roof or balcony, and the water tank is located indoors. The circulation of antifreeze fluid is controlled by a pump control system. When the temperature difference between the collector and the water tank reaches the set value, the water pump starts to pump the heat in the collector into the water tank for heat exchange; when the temperature difference decreases, the water pump stops. This installation method is flexible and more efficient.

III. In-Depth Advantage Analysis: Why It's the Superior Choice?

1. Enameled Inner Tank: The Absolute King of Durability

The lifespan of the inner tank directly determines the lifespan of the water heater. The advantages of an enameled inner tank are overwhelming:

Extreme Corrosion Resistance: The high-quality enamel completely isolates water from the steel, completely eliminating the risk of perforation caused by chlorine corrosion at the welds, a long-standing problem in the industry for stainless steel inner tanks.

Extreme Temperature Resistance: Withstands significant thermal shocks, resists cracking and cracking, and easily achieves a service life of over 15 years.

Healthy and Anti-Scale: The smooth, glassy surface resists scale adhesion and is easy to clean, ensuring water quality and protecting your family's skin.

2. Flat-Plate Collector: The Art of Balancing Safety and Efficiency

Compared to traditional vacuum tube collectors, flat-plate collectors offer numerous modern advantages:

Pressure-Resistant Operation: The entire system operates under tap water pressure, delivering powerful water flow and a refreshing bathing experience that rivals gas or electric water heaters.

Robust Structure: The integrated panel core structure offers high mechanical strength, effectively withstanding severe weather conditions such as hail, wind, and snow, without the risk of leaks and bursts from vacuum tubes.

Efficient Snow Melting and Defrosting: The flat surface of the flat-plate collector allows for easier transfer of heat generated by the absorber to the glass surface after winter snow accumulates, allowing the snow to slide off or melt naturally, maintaining efficient heat collection.

Aesthetic Integration: The simple and sleek design seamlessly integrates with sloping roofs or balcony railings, complementing modern architectural aesthetics and enhancing the overall value of a home.

3. Intelligent Control: Convenient Smart Experience

Modern enameled flat-plate solar water heaters are equipped with an intelligent controller, enabling:

Water Temperature and Water Level Display: Provides real-time control of hot water availability.

Automatic Auxiliary Heating: Connect to the electric auxiliary heating function, enabling one-touch activation in rainy and cloudy weather, ensuring 24-hour hot water.

Timed Heating: Auxiliary heating can be set to activate during off-peak hours, further saving costs.

Anti-Frost Cycle: In extremely cold regions, the circulation pump automatically activates to prevent pipe blockage.

4. Huge Economic and Environmental Benefits

Extremely low operating costs: A one-time investment yields long-term benefits. In areas with ample sunshine, this system can save 80%-90% on electricity or gas for hot water use throughout the year, typically achieving a payback period of 2-3 years.

Green and Zero Emissions: The entire process emits no pollutants, making it a truly zero-carbon energy source, solidifying the "green" reputation of your home.

IV. Application Scenarios and Purchasing Guide

Applicable Scenarios:

1. Newly renovated homes: Ideal for pre-installed piping during renovation, achieving a perfectly concealed installation.

2. Multi-story and high-rise residential buildings: Forced circulation split-type design perfectly solves the problem of high-rise users being unable to install solar panels.

3. Villas and low-rise residences: Can be installed on the rooftop, achieving large-area heat collection and even meeting home heating needs.

4. High-quality users: Families seeking a comfortable bathing experience with high water volume, constant temperature, and high pressure.

Purchasing Key Points:

1. Brand and Craftsmanship: Choose a professional, reputable brand for their enamel formula, sintering process, and quality inspection standards. Ask whether they use specialty glazes such as "Golden Glaze" and "Titanium Glaze."

2. Inner Tank Material: Pay attention to the thickness of the steel plate (usually no less than 2.5mm) and the thickness and uniformity of the enamel layer.

Core Technology: Prefer "purple copper tube with aluminum wings" or "full copper" cores. Surface coating technology (such as black chrome or anodizing) determines heat absorption efficiency.

3. Insulation: The water tank insulation must be a single-piece polyurethane foam with a thickness of at least 50mm. The higher the density, the better.

Installation service: "30% product, 70% installation." Be sure to confirm that the installation team is professionally certified and that the installation plan is sound. Proper installation is the core guarantee of performance and safety.

V. FAQ

Q: What should I do if there's no hot water on a rainy day?

A: Modern products are equipped with an intelligent electric auxiliary heating function. It can be activated automatically or manually on completely rainy days, operating like a regular electric water heater to ensure round-the-clock hot water supply.

Q: Will it freeze in winter?

A: No. The forced circulation system uses antifreeze as the heat exchange medium. Its freezing point is extremely low (e.g., -40°C), so it won't freeze even in extremely cold regions. The system also has an automatic antifreeze cycle.

Q: Is the installation complicated? Will it damage the roof?

A: Professional installation teams will use scientific fixing methods that generally do not damage the roof's waterproofing structure and may even perform additional waterproofing. Balcony wall-mounted installations are even simpler, requiring only fixing to the balcony's exterior wall.

Conclusion

The enameled flat-plate solar water heater is no longer just a simple water heater in the traditional sense. It is a high-tech home energy hub that integrates materials science (enameled inner tank), thermodynamics (flat-plate heat collection), and intelligent control. It represents a forward-thinking lifestyle: a shrewd calculation of long-term household costs, an uncompromising pursuit of a comfortable bathing experience, and a commitment to a sustainable future for the planet.

Choosing an enameled flat-plate solar water heater is more than just choosing a product; it's choosing a more advanced, environmentally friendly, and economical future lifestyle. It brings you warmth every day, savings every year, and respect for the environment.
